Same model may have multiple batches, images only for reference.

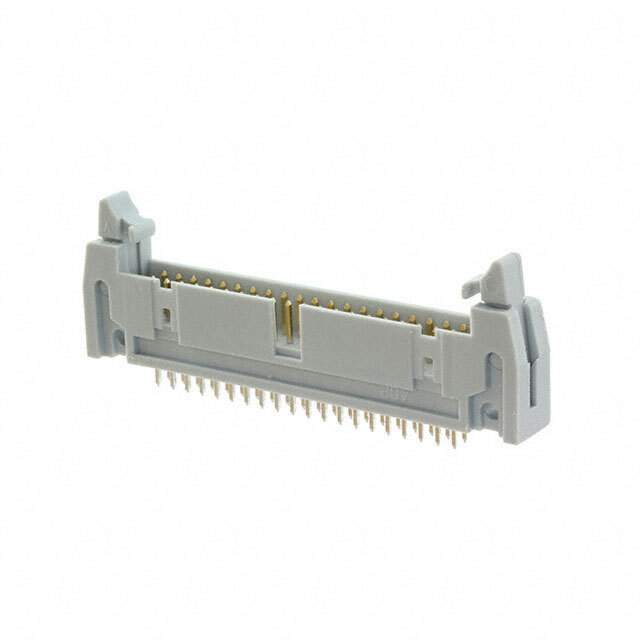

AWH 40G-0222-T

Name: AWH 40G-0222-T
Brand: Assmann WSW Components
SKU: 1338444
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AWH 40G-0222-T
Manufacturer	Assmann WSW Components
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 40POS 2.54MM / Connector Header Through Hole 40 position 0.100" (2.54mm)
Datasheet	AWH 40G-0222-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Assmann WSW Components
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	40
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.669" (17.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT) , Glass Filled
Features	Keying Slot
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
Current Rating (Amps)	3A
Base Product Number	AWH 40
Standard Package	60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338444-AWH 40G-0222-T
Ultra Librarian 3D Model	Ultra Librarian AWH 40G-0222-T CAD Model

Alternative Products

Description

This is a rectangular connector product from Assmann WSW Components.

Win Source Part Number: 1338444-AWH 40G-0222-T
Category: Headers, Male Pins
Positions: 40
Keying Feature: Keying Slot
Connector Type: Header
Contact Gender: Male Pins
Positions Loaded: All
Number of Rows: 2
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Package: Tray
Contact Material: Brass
Pitch - Mating: 0.100" (2.54mm)
Contact Finish Mating: Gold
Contact Finish Thickness Mating: Flash
Contact Finish Post: Tin
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4040
Base Product Number: AWH 40
