Same model may have multiple batches, images only for reference.

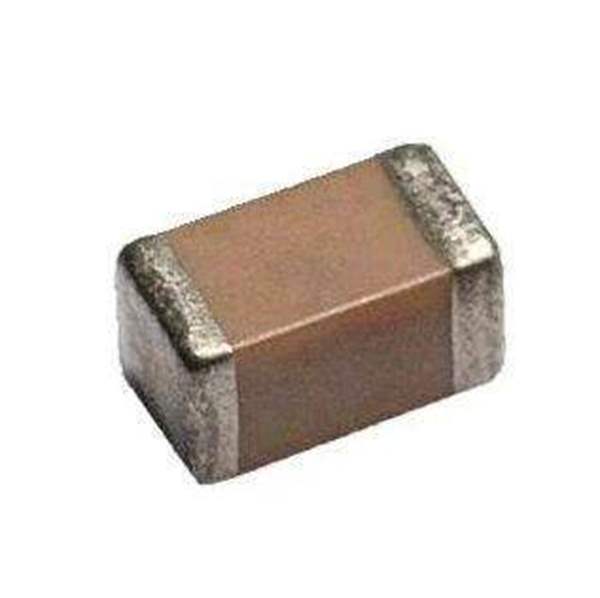

02013A470GAT2A KYOCERA AVX
Same model may have multiple batches, images only for reference.

02013A470GAT2A

Part No 02013A470GAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM03ACG1E470GH NEW GLOBAL PN 25V 47pF C A 581-KGM03ACG1E470GH
Datasheet
02013A470GAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308813-02013A470GAT2A
Manufacturer KYOCERA AVX
Category Capacitors>Ceramic Capacitors
Capacitance 47 pF
Voltage Rating DC 25 VDC
Dielectric C0G (NP0)
Tolerance 2 %
Termination Standard
Length 0.6 mm (0.024 in)
Width 0.3 mm (0.012 in)
Package / Case 0201 (0603 metric)
Ultra Librarian 3D Model Ultra Librarian 02013A470GAT2A CAD Model

Description

C0G (NP0) is the most popular formulation of the “temperature-compensating,” EIA Class I ceramic materials. Modern C0G (NP0) formulations contain neodymium, samarium and other rare earth oxides.
C0G (NP0) ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C. Capacitance drift or hysteresis for C0G (NP0) ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G (NP0), one-fifth that shown by most other dielectrics.
