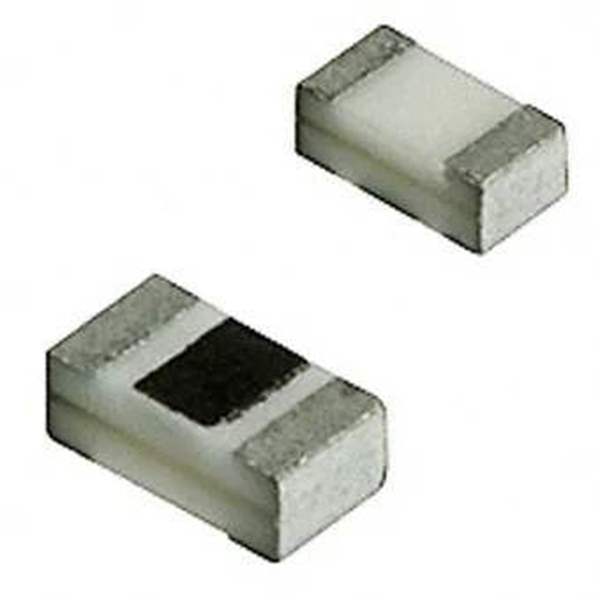

08051K1R0BAWTR

Part No 08051K1R0BAWTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 1PF 100V 0805 / 1 pF Thin Film Capacitor 100 V 0805 (2012 Metric)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Thin Film Capacitors
Mfr AVX Corp/Kyocera Corp
Series Accu-F®
Package Tape & Reel
Product Status Obsolete
Capacitance 1 pF
Tolerance ±0.1pF
Voltage - Rated 100 V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.079" L x 0.050" W (2.00mm x 1.27mm)
Height - Seated (Max) 0.029" (0.73mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 904704-08051K1R0BAWTR
Ultra Librarian 3D Model Ultra Librarian 08051K1R0BAWTR CAD Model

Description

The AVX Corp/Kyocera Corp 904704-08051K1R0BAWTR is a thin film capacitor from the Accu-F® series.

  • Designed for: RF applications
  • Characteristics: High Q and low loss
  • Capacitance: 1 pF
  • Voltage Rating: 100V
  • Size: 0.079" L x 0.050" W (2.00mm x 1.27mm)
  • Height above the board: 0.029" (0.73mm)
  • Package: Tape & reel
  • Pieces per package: 3,000
  • Mounting Type: Surface mountable
  • Package Size: 0805 (2012 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (Unlimited)
  • HTSUS code: 8532.29.0040
  • Product Status: Obsolete
