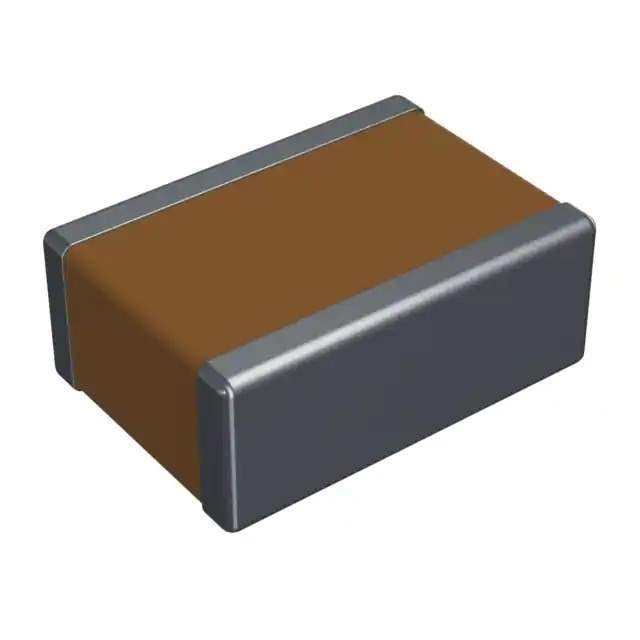

1825WC562MAT1A Real Image
Same model may have multiple batches, images only for reference.

1825WC562MAT1A

Part No 1825WC562MAT1A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 5600PF 2.5KV X7R 1825 / 5600 pF ±20% 2500V (2.5kV) Ceramic Capacitor X7R 1825 (4564 Metric)
Datasheet
1825WC562MAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr AVX Corp/Kyocera Corp
Package Tape & Reel
Product Status Active
Capacitance 5600 pF
Tolerance ±20%
Voltage - Rated 2500V (2.5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1825 (4564 Metric)
Size / Dimension 0.177" L x 0.252" W (4.50mm x 6.40mm)
Thickness (Max) 0.100" (2.54mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 905617-1825WC562MAT1A
Ultra Librarian 3D Model Ultra Librarian 1825WC562MAT1A CAD Model

Description

The 905617-1825WC562MAT1A is a high voltage ceramic capacitor from AVX Corp/Kyocera Corp.

  • Manufacturer: AVX Corp/Kyocera Corp
  • Capacitance: 5600 pF
  • Voltage Rating: 2500V (2.5kV)
  • Application: General purpose
  • Tolerance: ±20%
  • Size: 0.177" L x 0.252" W (4.50mm x 6.40mm)
  • Mounting: Surface mountable
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Standard Package: 500 pcs
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
