Same model may have multiple batches, images only for reference.

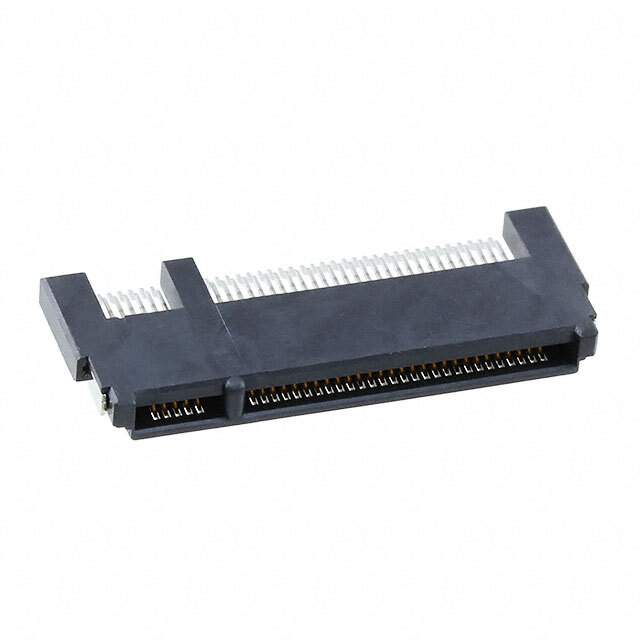

246411067000883M Real Image
Same model may have multiple batches, images only for reference.

246411067000883M

Part No 246411067000883M
Manufacturer AVX Corp/Kyocera Corp
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN FEMALE 67POS 0.020 GOLD / 67 Position Female Connector Gold 0.020" (0.50mm)
Datasheet
246411067000883M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Product Status Obsolete
Gender Female
Number of Positions 67
Number of Rows 2
Pitch 0.020" (0.50mm)
Read Out Dual
Features Board Guide, Keyed
Mounting Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Temperature Range - Operating -40°C ~ 80°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 1253-1600-2,478-246411067000883M,1253-1600-2-ND,1253-1600-1-ND,478-246411067000883M-ND,478-246411067000883MCT,1253-1600-6,478-246411067000883MTR,478-246411067000883MDKR,1253-1600-1,1253-1600-6-ND
Standard Package 1,000
Win Source Part Number 1333983-246411067000883M
Ultra Librarian 3D Model Ultra Librarian 246411067000883M CAD Model

Description

The KYOCERA AVX 1333983-246411067000883M is a surface mount, right-angle female edgeboard connector.

  • Positions: 67
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Features: Board Guide and Keyed
  • Packaging: Reel
  • Quantity: 1,000
  • Status: Obsolete
  • Operating Temperature Range: -40°C ~ 80°C
  • ROHS3: Compliant
  • REACH: Unaffected
