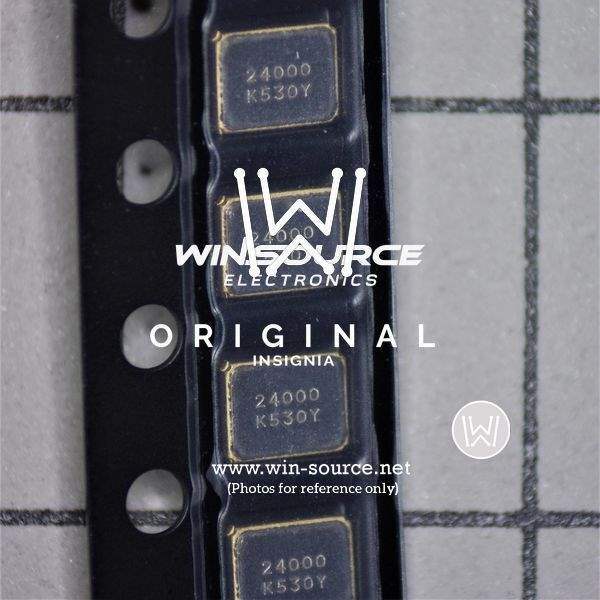

CX3225SB24000D0FPLCC Real Image CX3225SB24000D0FPLCC real image
Same model may have multiple batches, images only for reference.
CX3225SB24000D0FPLCC Real Image CX3225SB24000D0FPLCC real image
CX3225SB24000D0FPLCC Real Image CX3225SB24000D0FPLCC real image
Same model may have multiple batches, images only for reference.

CX3225SB24000D0FPLCC

Part No CX3225SB24000D0FPLCC
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description CRYSTAL 24.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kyocera International Inc. Electronic Components
Packaging Reel
Type MHz Crystal
Frequency 24MHz
Frequency Stability ±20ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.024" (0.60mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802632-CX3225SB24000D0FPLCC
Ultra Librarian 3D Model Ultra Librarian CX3225SB24000D0FPLCC CAD Model

Description

The Kyocera International Inc. Electronic Components MHz Crystal is a high-quality crystal.

  • Frequency: 24MHz
  • ESR: 50 Ohms
  • Mode: Fundamental
  • Load Capacitance: 8pF
  • Temperature Range: -40°C to 85°C
  • Package: 4-SMD, No Lead
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
