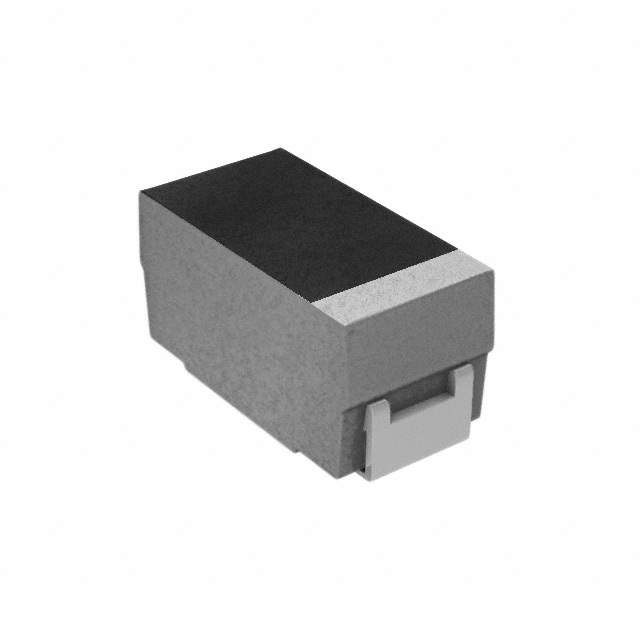

F971A226MAAHT3 Real Image
Same model may have multiple batches, images only for reference.

F971A226MAAHT3

Part No F971A226MAAHT3
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum Capacitors
Description CAP TANT 22UF 20% 10V 1206 / 22 µF Molded Tantalum Capacitors 10 V 1206 (3216 Metric) 3Ohm
Datasheet
F971A226MAAHT3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr KYOCERA AVX
Series F97-HT3
Package Tape & Reel
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 3Ohm
Temperature Range - Operating -55°C ~ 135°C
Lifetime @ Temp. 2000 Hrs @ 135°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.071" (1.80mm)
Manufacturer Size Code A
Ratings AEC-Q200
Features Automotive, High Reliability
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.21.0050
Other Names 478-12052-2,478-12052-1,478-12052-6
Standard Package 2,000
Win Source Part Number 1150671-F971A226MAAHT3
Ultra Librarian 3D Model Ultra Librarian F971A226MAAHT3 CAD Model

Description

The F971A226MAAHT3 tantalum capacitor is part of the F97-HT3 series from Kyocera.

  • Manufacturer: Kyocera
  • Series: F97-HT3
  • Capacitance: 22µF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 3Ohm
  • Temperature Range: -55°C to 135°C
  • Lifetime: 2000 hours @ 135°C
  • Package / Case: 1206 (3216 Metric)
  • Mounting Type: SMD (SMT)
  • AEC-Q200: Yes
