Same model may have multiple batches, images only for reference.

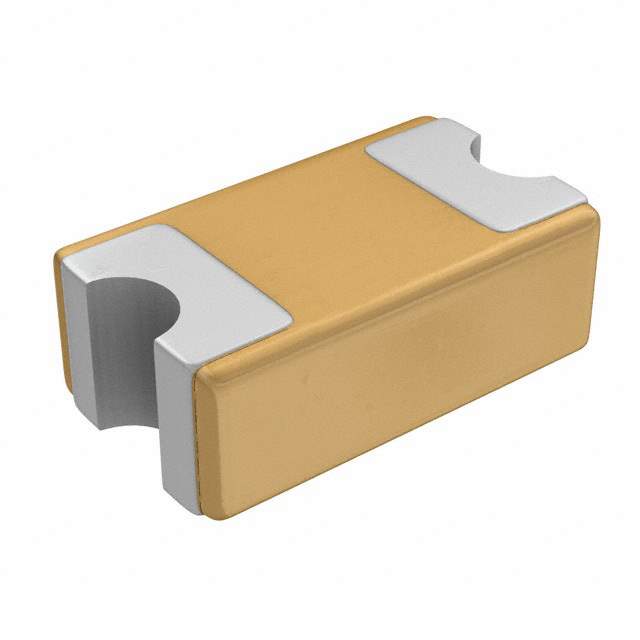

HLC02220HTTR Real Image
Same model may have multiple batches, images only for reference.

HLC02220HTTR

Part No HLC02220HTTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Fixed Inductors
Description FIXED IND 22NH 202MA 1.9 OHM SMD / 22 nH Unshielded Multilayer Inductor 202 mA 1.9Ohm Max 0402 (1005 Metric)
Datasheet
HLC02220HTTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr KYOCERA AVX
Series MLO™
Package Tape & Reel
Type Multilayer
Material - Core Non-Magnetic
Inductance 22 nH
Tolerance ±3%
Current Rating (Amps) 202 mA
Shielding Unshielded
DC Resistance (DCR) 1.9Ohm Max
Q @ Freq 30 @ 450MHz
Frequency - Self Resonant 3GHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 450 MHz
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.023" W (1.00mm x 0.58mm)
Height - Seated (Max) 0.018" (0.45mm)
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1337488-HLC02220HTTR
Ultra Librarian 3D Model Ultra Librarian HLC02220HTTR CAD Model

Description

The MLO™ fixed inductor manufactured by KYOCERA AVX is a high-performance electronic component suitable for various applications.

  • Inductance: 22 nH
  • Tolerance: ±3%
  • Q: 30 @ 450MHz
  • Package / Case: 0402 (1005 Metric)
  • Mounting Type: Surface Mount
  • Height: 0.018" (0.45mm)
  • Package Quantity: 5,000
  • Packaging: Tape and Reel
  • Dimensions: 0.039" L x 0.023" W (1.00mm x 0.58mm)
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
