Same model may have multiple batches, images only for reference.

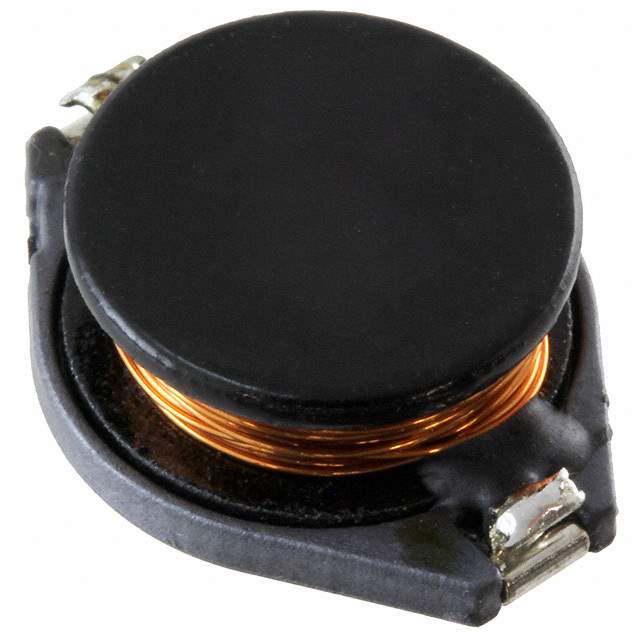

LMXN1915M100CTAS Real Image
Same model may have multiple batches, images only for reference.

LMXN1915M100CTAS

Part No LMXN1915M100CTAS
Manufacturer AVX Corp/Kyocera Corp
Catalog Fixed Inductors
Description FIXED IND 10UH 31 MOHM SMD / 10 µH Unshielded Drum Core, Wirewound Inductor 31mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current - Saturation (Isat) 10A
Shielding Unshielded
DC Resistance (DCR) 31mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.730" L x 0.600" W (18.54mm x 15.24mm)
Height - Seated (Max) 0.280" (7.11mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 478-7106-1,478-7106-2,LMXN2216M100CTAS,478-7106-6
Standard Package 250
Win Source Part Number 1327346-LMXN1915M100CTAS
Ultra Librarian 3D Model Ultra Librarian LMXN1915M100CTAS CAD Model

Description

The KYOCERA AVX 1327346-LMXN1915M100CTAS is a surface mount inductor that is perfect for general-purpose applications.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • Size/Dimension: 0.730" L x 0.600" W (18.54mm x 15.24mm)
  • Height Seated: 0.280" (7.11mm)
  • Packaging: Reel
  • Standard Package: 250
  • Material-Core: Ferrite
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C ~ 125°C
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
