Same model may have multiple batches, images only for reference.

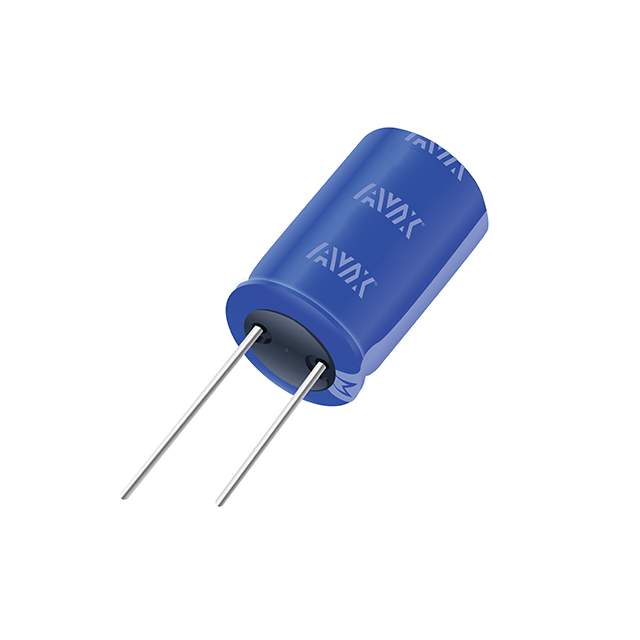

SCCR25E505PRB Real Image
Same model may have multiple batches, images only for reference.

SCCR25E505PRB

Part No SCCR25E505PRB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCR25E505PRB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC
Package Bulk
Capacitance 5 F
Tolerance 0%, +100%
Voltage - Rated 3 V
ESR (Equivalent Series Resistance) 85mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-11284,SCCR25E505SRB
Standard Package 1,200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1302735-SCCR25E505PRB
Ultra Librarian 3D Model Ultra Librarian SCCR25E505PRB CAD Model

Description

The KYOCERA AVX SCC series electric double layer capacitors (EDLC), supercapacitors are a reliable choice for your electronic needs.

  • Model: SCCR25E505PRB
  • Capacitance: 5 F
  • Voltage Rated: 3 V
  • ESR: 85mOhm @ 1kHz
  • Package/Case: Radial, Can
  • Mounting Type: Through Hole
  • Height Seated: 1.063" (27.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • Lifetime: 1000 Hrs @ 60°C
  • Operating Temperature Range: -40°C to 65°C
  • Package: 1,200
