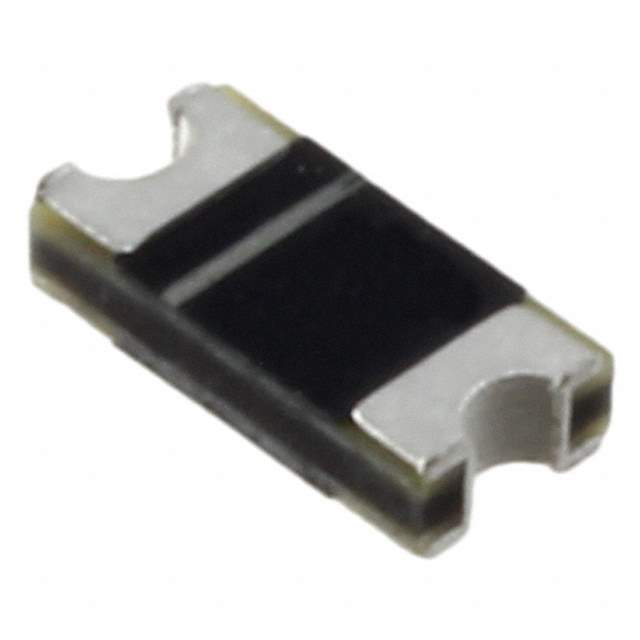

SD2010S020S1R0 Real Image
Same model may have multiple batches, images only for reference.

SD2010S020S1R0

Part No SD2010S020S1R0
Manufacturer AVX Corp/Kyocera Corp
Catalog Diodes, Rectifiers - Single
Datasheet
SD2010S020S1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr KYOCERA AVX
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 1A (DC)
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 200 µA @ 20 V
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Supplier Device Package 2010/DO-214AC
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number SD2010S020S1R0
Other Names 478-7811-2,478-7811-1,478-7811-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1282491-SD2010S020S1R0
Ultra Librarian 3D Model Ultra Librarian SD2010S020S1R0 CAD Model

Description

The KYOCERA AVX SD2010S020S1R0 is a Schottky diode that is used in various electronic applications.

  • Maximum Reverse Voltage (Vr): 20 V
  • Average Rectified Current (Io): 1A (DC)
  • Forward Voltage (Vf): 500 mV @ 1 A
  • Reverse Leakage Current @ Vr: 200 µA @ 20 V
  • Capacitance @ Vr, F: Not specified
  • Operating Temperature Range: -55°C ~ 125°C
  • Mounting Type: Surface-mount component
  • Package/Case: 2-SMD, No Lead package/case
  • Supplier Device Package: 2010/DO-214AC
  • Win Source Part Number: 1282491-SD2010S020S1R0
