Same model may have multiple batches, images only for reference.

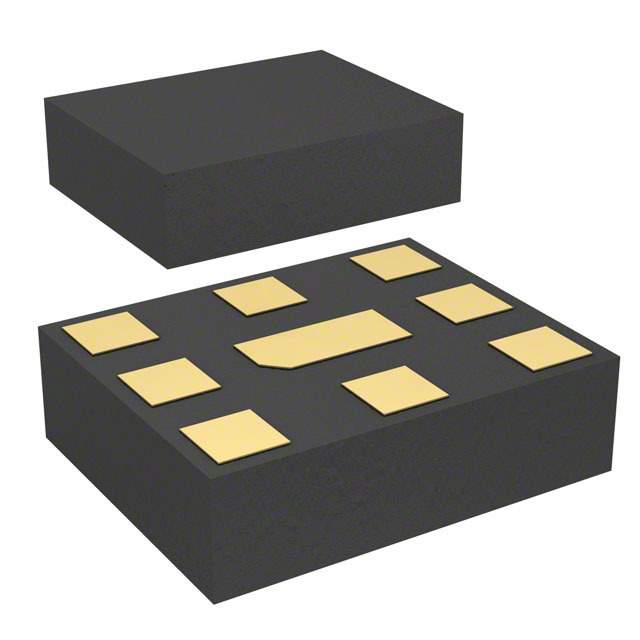

SD25-0897R9UBQ1 Real Image
Same model may have multiple batches, images only for reference.

SD25-0897R9UBQ1

Part No SD25-0897R9UBQ1
Manufacturer AVX Corp/Kyocera Corp
Catalog RF Diplexers
Description DUPLEXER SAW 897MHZ SMD
Datasheet
SD25-0897R9UBQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer AVX Corp/Kyocera Corp
Packaging Reel - TR
Status Active
Frequency Bands (Low / High) 869MHz to 894MHz / 2.11GHz to 2.17GHz
Low Band Attenuation (min / max dB) 15dB / 45dB
High Band Attenuation (min / max dB) 28dB to 45dB
Mounting SMD (SMT)
Dimension 9-SMD, No Lead
Win Source Part Number 1094983-SD25-0897R9UBQ1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SD25-0897R9UBQ1 CAD Model

Description

The SD25-0897R9UBQ1 from KYOCERA AVX is a surface-mount RF/IF and RFID filter that operates in the frequency range of 869MHz to 894MHz and 2.11GHz to 2.17GHz.

  • Frequency Range: 869MHz to 894MHz and 2.11GHz to 2.17GHz
  • Low Band Attenuation: 15dB to 45dB
  • High Band Attenuation: 28dB to 45dB
  • Package: 9-SMD, no lead package
  • Application: Wireless communication systems
