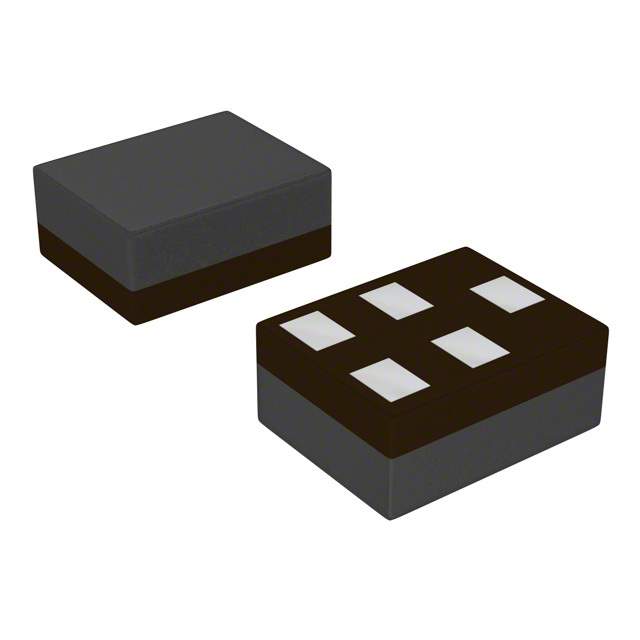

SF14-2446M5UUA3 Real Image
Same model may have multiple batches, images only for reference.

SF14-2446M5UUA3

Part No SF14-2446M5UUA3
Manufacturer AVX Corp/Kyocera Corp
Catalog SAW Filters
Datasheet
SF14-2446M5UUA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr KYOCERA AVX
Series SF, Kyocera
Package Tape & Reel (TR)
Frequency - Center 2.4465GHz
Bandwidth 93MHz
Insertion Loss 1.5dB
Applications Bluetooth, WLAN
Mounting SMD (SMT)
Package / Case 5-SMD, No Lead
Height (Max) 0.028" (0.70mm)
Dimension 0.055" L x 0.043" W (1.40mm x 1.10mm)
Other Names 478-SF14-2446M5UUA3,SF14-2446M5UUA3
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1275915-SF14-2446M5UUA3
Ultra Librarian 3D Model Ultra Librarian SF14-2446M5UUA3 CAD Model

Description

The KYOCERA AVX SAW filter is a high-quality component that is ideal for Bluetooth and WLAN applications.

  • Manufacturer: KYOCERA AVX
  • Application: Bluetooth and WLAN
  • Frequency Center: 2.4465GHz
  • Bandwidth: 93MHz
  • Insertion Loss: 1.5dB
  • Mounting: Surface-mounted
  • Size: 0.055" L x 0.043" W (1.40mm x 1.10mm)
  • Height: 0.028" (0.70mm)
  • Package: Tape and reel package of 3,000
  • REACH: Unaffected
