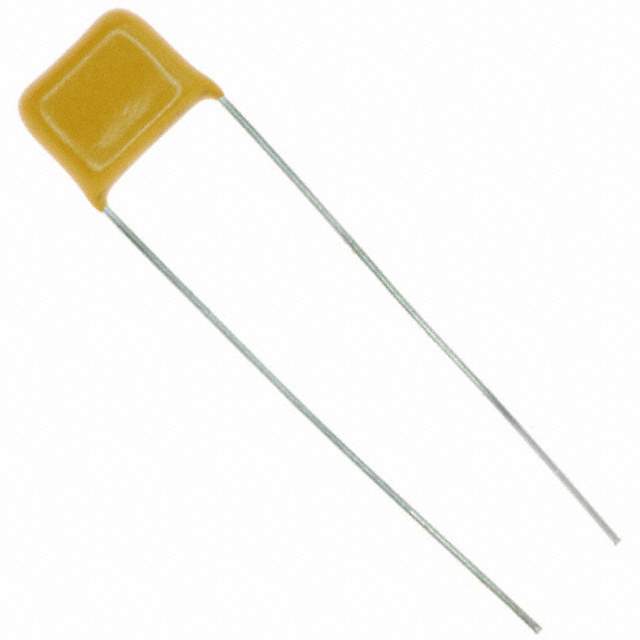

SV01AC103MAR Real Image
Same model may have multiple batches, images only for reference.

SV01AC103MAR

Part No SV01AC103MAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV01AC103MAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 10000 pF
Tolerance ±20%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.250" L x 0.200" W (6.35mm x 5.08mm)
Height - Seated (Max) 0.220" (5.59mm)
Lead Spacing 0.170" (4.32mm)
Lead Style Straight
Other Names 478-4036,Q13120067
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302937-SV01AC103MAR
Ultra Librarian 3D Model Ultra Librarian SV01AC103MAR CAD Model

Description

The KYOCERA AVX SV series ceramic capacitor is a high voltage capacitor with a capacitance of 10000 pF and a voltage rating of 1000V.

  • Capacitance: 10000 pF
  • Voltage Rating: 1000V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Package: Radial
  • Height (Seated): 0.220" (5.59mm)
  • Standard Package: 300 capacitors
  • ECCN: EAR99
