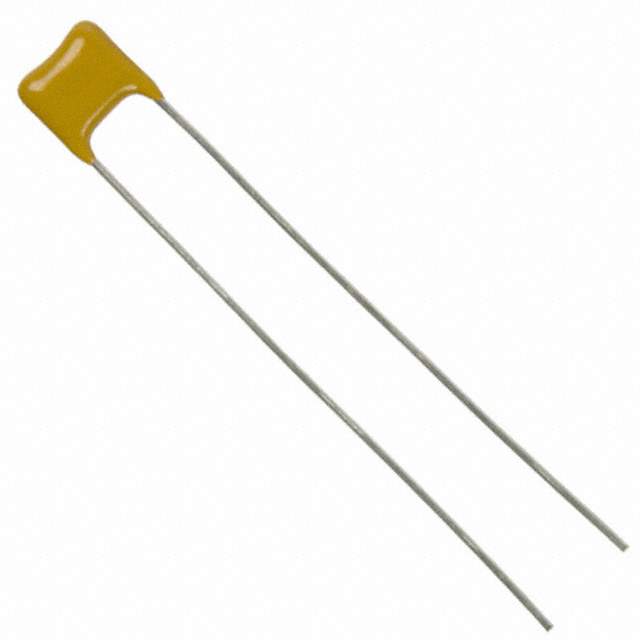

SV03CC104KAR Real Image
Same model may have multiple batches, images only for reference.

SV03CC104KAR

Part No SV03CC104KAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV03CC104KAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 0.1 µF
Tolerance ±10%
Voltage - Rated 630V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.370" L x 0.200" W (9.40mm x 5.08mm)
Height - Seated (Max) 0.300" (7.62mm)
Lead Spacing 0.275" (6.99mm)
Lead Style Straight
Other Names 478-5624
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302954-SV03CC104KAR
Ultra Librarian 3D Model Ultra Librarian SV03CC104KAR CAD Model

Description

The KYOCERA AVX SV series is a ceramic capacitor series designed for general-purpose applications.

  • Manufacturer: KYOCERA AVX
  • Model: 1302954-SV03CC104KAR
  • Capacitance: 0.1 μF
  • Voltage Rating: 630V
  • Tolerance: ±10%
  • Package/Case: Radial
  • Lead Style: Straight
  • Mounting Type: Through-Hole
  • Height (Seated): 0.300" (7.62mm)
  • Lead Spacing: 0.275" (6.99mm)
  • Operating Temperature: -55°C ~ 125°C
  • Standard Package: 300
  • REACH: Unaffected
  • ECCN: EAR99
