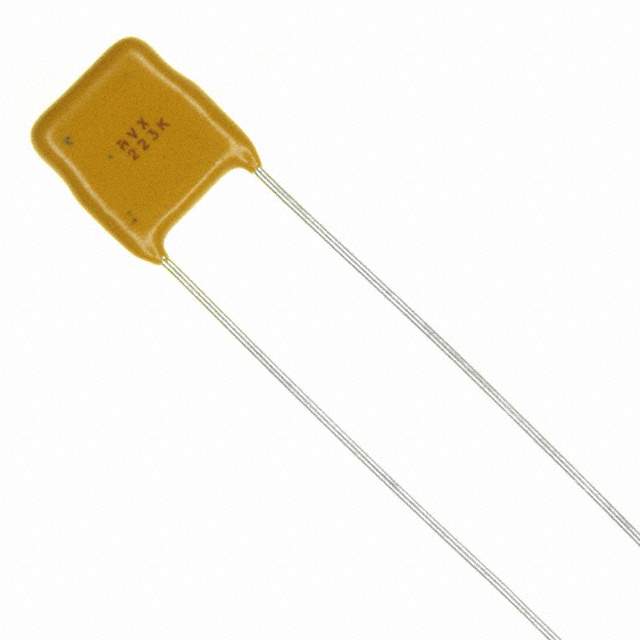

SV13CC101JAR Real Image
Same model may have multiple batches, images only for reference.

SV13CC101JAR

Part No SV13CC101JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV13CC101JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 630V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.300" L x 0.200" W (7.62mm x 5.08mm)
Height - Seated (Max) 0.360" (9.14mm)
Lead Spacing 0.200" (5.08mm)
Lead Style Straight
Other Names 478-5382
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302946-SV13CC101JAR
Ultra Librarian 3D Model Ultra Librarian SV13CC101JAR CAD Model

Description

The SV13CC101JAR capacitor is a ceramic capacitor with a capacitance of 100pF and a voltage rating of 630V.

  • Capacitance: 100pF
  • Voltage Rating: 630V
  • Tolerance: ±5%
  • Temperature Coefficient: X7R
  • Application: General Purpose
  • Height: 0.360 inches (9.14mm)
  • Mounting Type: Radial Through-Hole
  • Lead Spacing: 0.200 inches (5.08mm)
  • Lead Style: Straight
  • Material: Ceramic
  • Thickness: Not Specified
  • Packaging: Bulk
  • Standard Package: 300
  • Operating Temperature: -55°C to 125°C
