Same model may have multiple batches, images only for reference.

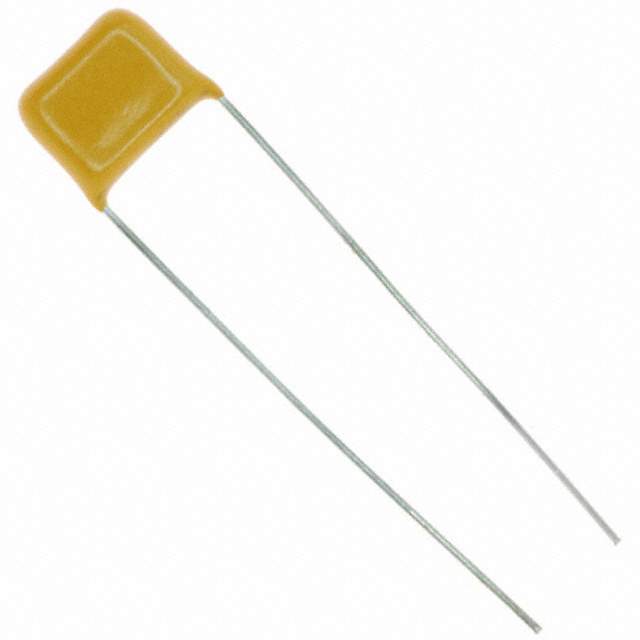

SV15JA102JAR Real Image
Same model may have multiple batches, images only for reference.

SV15JA102JAR

Part No SV15JA102JAR
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SV15JA102JAR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SV
Package Bulk
Capacitance 1000 pF
Tolerance ±5%
Voltage - Rated 4000V (4kV)
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.500" L x 0.200" W (12.70mm x 5.08mm)
Height - Seated (Max) 0.559" (14.20mm)
Lead Spacing 0.402" (10.20mm)
Lead Style Straight
Other Names 478-6829,-SV15JA102JAR
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1302943-SV15JA102JAR
Ultra Librarian 3D Model Ultra Librarian SV15JA102JAR CAD Model

Description

The SV15JA102JAR is a ceramic capacitor manufactured by KYOCERA AVX.

  • Capacitance: 1000 pF
  • Voltage Rating: 4000V (4kV)
  • Tolerance: ±5%
  • Temperature Coefficient: C0G, NP0
  • Series: SV
  • Application: General Purpose
  • Package: Radial
  • Standard Package: 200
  • Lead Spacing: 0.402 inches (10.20mm)
  • Lead Style: Straight
  • Height (Seated): 0.559 inches (14.20mm)
  • Operating Temperature: -55°C ~ 125°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.24.0060
