Same model may have multiple batches, images only for reference.

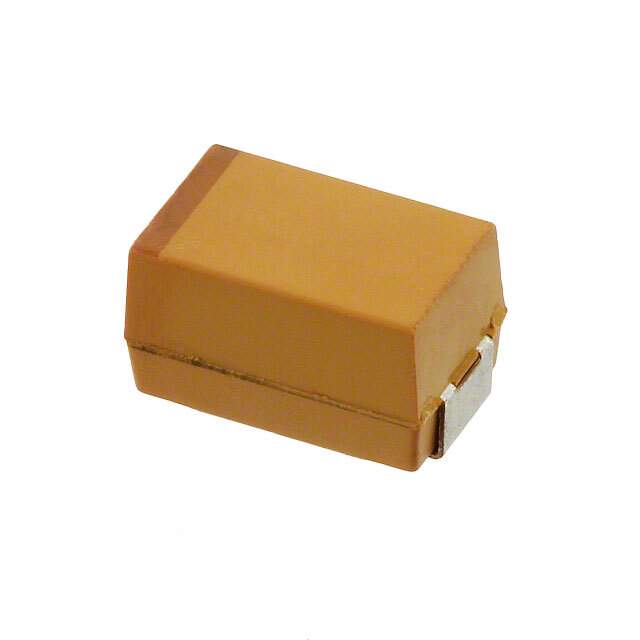

TCJR475M010A0500 Real Image
Same model may have multiple batches, images only for reference.

TCJR475M010A0500

Part No TCJR475M010A0500
Manufacturer AVX Corp/Kyocera Corp
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 4.7UF 10V 0805 / 4.7 µF Molded Tantalum Polymer Capacitor 10 V 0805 (2012 Metric) 500mOhm @ 100kHz
Datasheet
TCJR475M010A0500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum - Polymer Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 10 V
Type Molded
ESR (Equivalent Series Resistance) 500mOhm @ 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting Surface Mount
Case / Package 0805 (2012 Metric)
Size / Dimension 0.081" L x 0.051" W (2.05mm x 1.30mm)
Height - Seated (Max) 0.047" (1.20mm)
Manufacturer Size Code R
Features General Purpose
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.21.0050
Other Part Number 478-9477-1,478-9477-2,478-9477-6
Standard Package 2,500
Win Source Part Number 1330496-TCJR475M010A0500
Ultra Librarian 3D Model Ultra Librarian TCJR475M010A0500 CAD Model

Description

The KYOCERA AVX 1330496-TCJR475M010A0500 is a tantalum-polymer capacitor with a capacitance of 4.7µF and a voltage rating of 10V.

  • Capacitance: 4.7µF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • ESR: 500mOhm @ 100kHz
  • Mounting Type: Surface Mount
  • Package/Case Size: 0805 (2012 Metric)
  • Application: General Purpose
  • Temperature Range: -55°C to 105°C
  • Package: Reel - TR
  • Standard Package: 2,500 units
  • Dimension: 0.081" L x 0.051" W (2.05mm x 1.30mm)
  • ROHS3 Compliant: Yes
