Same model may have multiple batches, images only for reference.

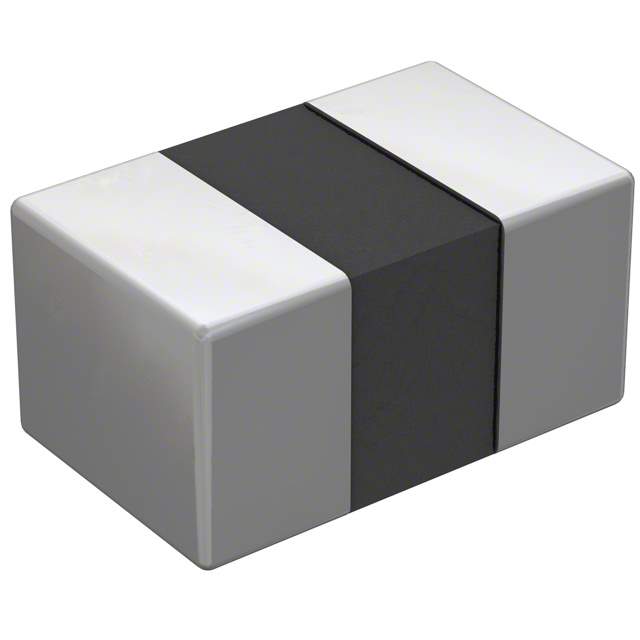

VC080503A100DP Real Image
Same model may have multiple batches, images only for reference.

VC080503A100DP

Part No VC080503A100DP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 5V 40A 0805 / 5 V 40 A Varistor 1 Circuit Surface Mount, MLCV 0805 (2012 Metric)
Datasheet
VC080503A100DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Maximum AC Volts 2.3 V
Maximum DC Volts 3.3 V
Varistor Voltage (Min) 4 V
Varistor Voltage (Typ) 5 V
Varistor Voltage (Max) 6 V
Current - Surge 40 A
Energy 0.1J
Number of Circuits 1
Capacitance @ Frequency 1400 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 0805 (2012 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Other Names 478-2504-6,478-2504-2,478-2504-1
Standard Package 1,000
Win Source Part Number 1034709-VC080503A100DP
Ultra Librarian 3D Model Ultra Librarian VC080503A100DP CAD Model

Description

The VC080503A100DP is a TVS varistor used for circuit protection.

  • Type: TVS Varistor
  • Capacitance: 1400 pF @ 1kHz
  • Varistor Voltage: 4V to 6V
  • Surge Current: 40A
  • Maximum AC Voltage: 2.3V
  • Maximum DC Voltage: 3.3V
  • Energy Rating: 0.1J
  • Mounting: Surface mount, MLCV
  • Package/Case: 0805 (2012 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer: KYOCERA AVX
  • ECCN: EAR99
