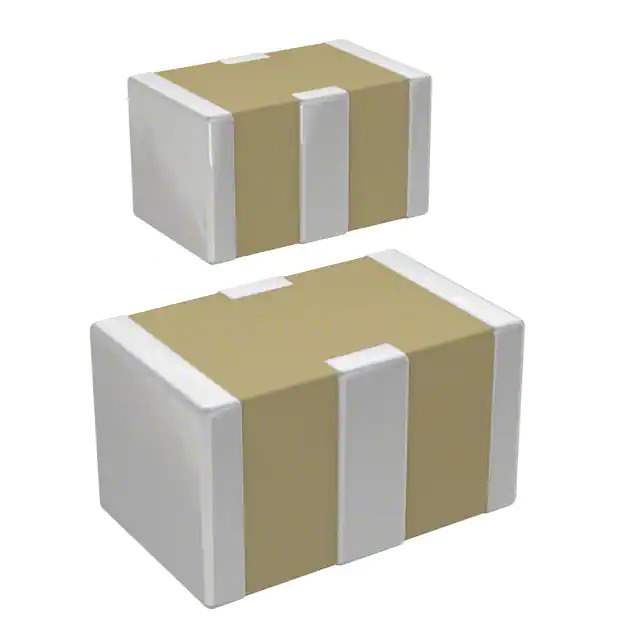

W2H11A4718AT1F Real Image
Same model may have multiple batches, images only for reference.

W2H11A4718AT1F

Part No W2H11A4718AT1F
Manufacturer AVX Corp/Kyocera Corp
Catalog Feed Through Capacitors
Description CAP FEEDTHRU 470PF 100V 0805
Datasheet
W2H11A4718AT1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Feed Through Capacitors
Mfr AVX Corp/Kyocera Corp
Series W2H
Package Tape & Reel
Product Status Active
Capacitance 470 pF
Tolerance -20%, +50%
Voltage - Rated 100V
Current 500 mA
DC Resistance (DCR) (Max) 150mOhm
Temperature Range - Operating -55°C ~ 125°C
Temperature Coefficient C0G, NP0
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 4 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Height (Max) 0.045" (1.14mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 851842-W2H11A4718AT1F
Ultra Librarian 3D Model Ultra Librarian W2H11A4718AT1F CAD Model

Description

The W2H11A4718AT1F is a feed-through capacitor from AVX Corp/Kyocera Corp.

  • Capacitance: 470 pF
  • Tolerance: -20%, +50%
  • Voltage Rating: 100V
  • Temperature Coefficient: C0G, NP0
  • Size: 0.079" L x 0.049" W (2.01mm x 1.25mm)
  • DC Resistance (DCR): 150mOhm
  • Height: 0.045" (1.14mm) max
  • Applications: RF and Wireless
  • Status: Active
