Same model may have multiple batches, images only for reference.

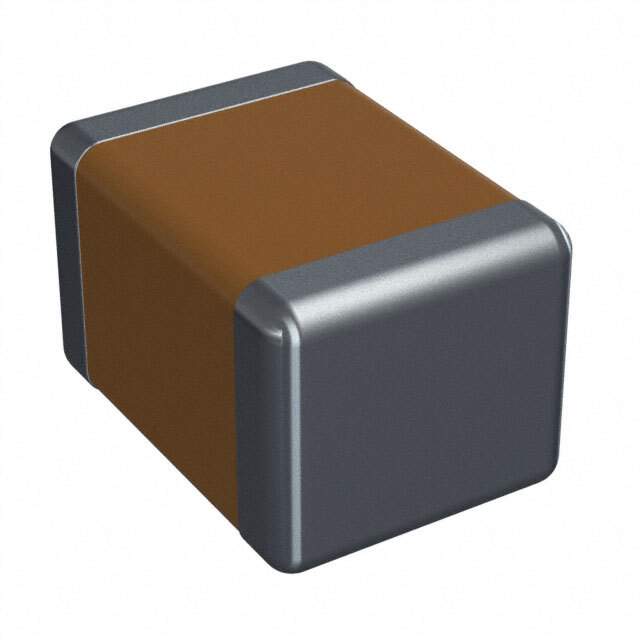

1812HA101KAT1A Real Image
Same model may have multiple batches, images only for reference.

1812HA101KAT1A

Part No 1812HA101KAT1A
Manufacturer AVX Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 3KV C0G/NP0 1812
Datasheet
1812HA101KAT1A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel package
Capacitance 100pF
Tolerance ±10%
Voltage Rating DC 3000V (3kV)
Temperature Coefficient C0G, NP0
Operating Temperature Range -55°C ~ 125°C
Features High Voltage
Applications General
Mounting Surface Mount, MLCC
Package 1812 (4532 Metric)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Maximum) 0.100" (2.54mm)
Win Source Part Number 760670-1812HA101KAT1A
Popularity Medium
Supply and Demand Status Balance
Family Name 1812
Introduction Date October 27, 2017
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian 1812HA101KAT1A CAD Model

Description

The 1812HA101KAT1A is a surface mount, MLCC high voltage capacitor from AVX Corporation.

  • Capacitance: 100pF
  • Tolerance: +/-10%
  • Temperature Coefficient: C0G, NP0
  • Voltage Rating DC: 3000V (3kV)
  • Package: Reel
  • Operating Temperature: -55°C to 125°C
  • Applications: General
  • Supply and Demand: Balanced
