Same model may have multiple batches, images only for reference.

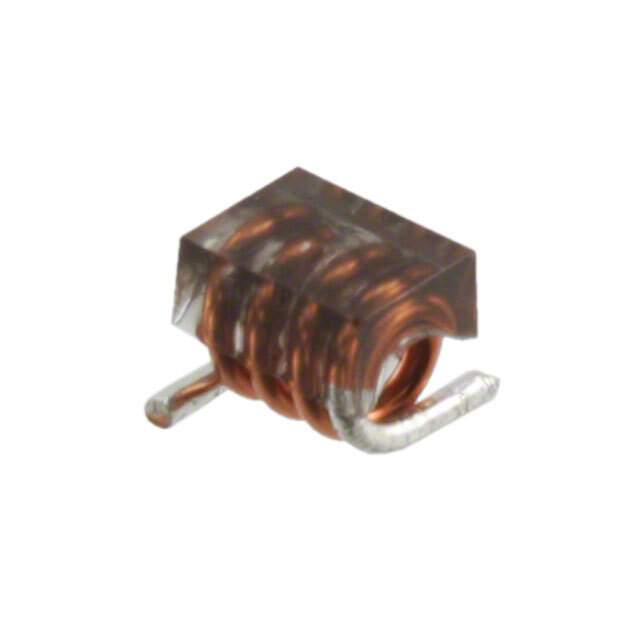

AL05A5N45GTR Real Image
Same model may have multiple batches, images only for reference.

AL05A5N45GTR

Part No AL05A5N45GTR
Manufacturer AVX Corporation
Catalog Fixed Inductors
Description FIXED IND 5.45NH 1.6A 8 MOHM SMD
Datasheet
AL05A5N45GTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Air
Inductance 5.45nH
Tolerance ±2%
Current Rating 1.6A
DC Resistance (DCR) 8 mOhm Max
Q @ Freq 100 @ 800MHz
Frequency - Self Resonant 7GHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 800MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.060" (1.52mm)
Win Source Part Number 1016443-AL05A5N45GTR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AL05A5N45GTR CAD Model

Description

The 1016443-AL05A5N45GTR is a wirewound inductor from AVX Corporation with a current rating of 1.6A and an inductance of 5.45nH.

  • Inductor Type: Wirewound
  • Current Rating: 1.6A
  • Inductance: 5.45nH
  • Tolerance: ±2%
  • ESR: 8 mOhm Max
  • Mounting: SMD mounted
  • Packaging: Reel - TR
  • Height: 0.060" (1.52mm)
  • Core Material: Air
  • Q @ Freq: 100 @ 800MHz
  • Frequency - Self-Resonant: 7GHz
  • Application: Inductors, Coils, Chokes
  • Supply and Demand Status: sufficient
