Same model may have multiple batches, images only for reference.

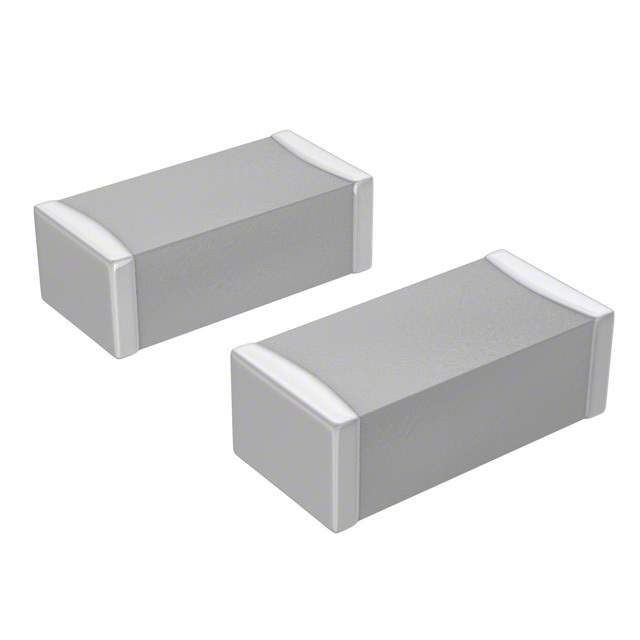

CB017D0222JBA Real Image
Same model may have multiple batches, images only for reference.

CB017D0222JBA

Part No CB017D0222JBA
Manufacturer AVX Corporation
Catalog Film Capacitors
Description CAP FILM 2200PF 5% 63VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer AVX Corporation
Packaging Reel
Capacitance 2200pF
Tolerance ±5%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 1206 (3216 Metric)
Dimension 0.130" L x 0.063" W (3.30mm x 1.60mm)
Height - Seated (Maximum) 0.045" (1.15mm)
Termination Solder Pads
Applications Use For General
Manufacturer Pack Quantity 3,900
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805610-CB017D0222JBA
Ultra Librarian 3D Model Ultra Librarian CB017D0222JBA CAD Model

Description

AVX Corporation presents a high-quality electronic component with the part number 805610-CB017D0222JBA.

  • Capacitance: 2200pF
  • Tolerance: ±5%
  • Voltage Rating: 40V AC, 63V DC
  • Type: Metallized - Stacked
  • Dielectric Material: Polyester, Polyethylene Naphthalate (PEN)
  • Temperature Range: -55°C to 125°C
  • Package: 1206 (3216 Metric)
  • Mounting Style: SMD
  • Termination: Solder Pads
  • Application: General
  • Packaging: Reel
  • Quantity: 3,900 units
  • Height: 0.045" (1.15mm)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • MSL Level: 3 (168 Hours)
