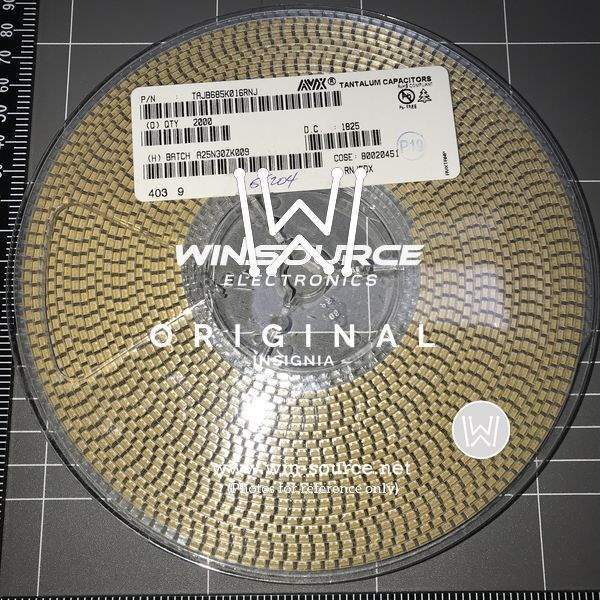

TAJB685K016RNJ AVX Corporation TAJB685K016RNJ Real Image TAJB685K016RNJ label picture
Same model may have multiple batches, images only for reference.
TAJB685K016RNJ AVX Corporation TAJB685K016RNJ Real Image TAJB685K016RNJ label picture
TAJB685K016RNJ AVX Corporation TAJB685K016RNJ Real Image TAJB685K016RNJ label picture
Same model may have multiple batches, images only for reference.

TAJB685K016RNJ

Part No TAJB685K016RNJ
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 6.8UF 16V 10% 1411
Datasheet
TAJB685K016RNJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Capacitance 6.8μF
Tolerance ±10%
Voltage Rating 16V
Type Molded
ESR 2.5 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
Win Source Part Number 047740-TAJB685K016RNJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Consumer Electronics, Portable Devices
Family Name TAJ
Introduction Date December 31, 2002
ECCN EAR99
Country of Origin Czech Republic
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian TAJB685K016RNJ CAD Model

Description

The AVX TAJ series capacitor is a molded general-purpose capacitor designed for use in industrial, power management, consumer electronics, and portable devices.

  • Capacitance: 6.8μF
  • Voltage Rating: 16V
  • Tolerance: ±10%
  • ESR: 2.5 Ohm
  • Lifetime @ Temperature: Not specified
  • Mounting: Surface
  • Height: 0.083" (2.10mm)
  • Manufacturer Size Code: B
  • Family: TAJ
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.138" L x 0.110" W (3.50mm x 2.80mm)
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2024
