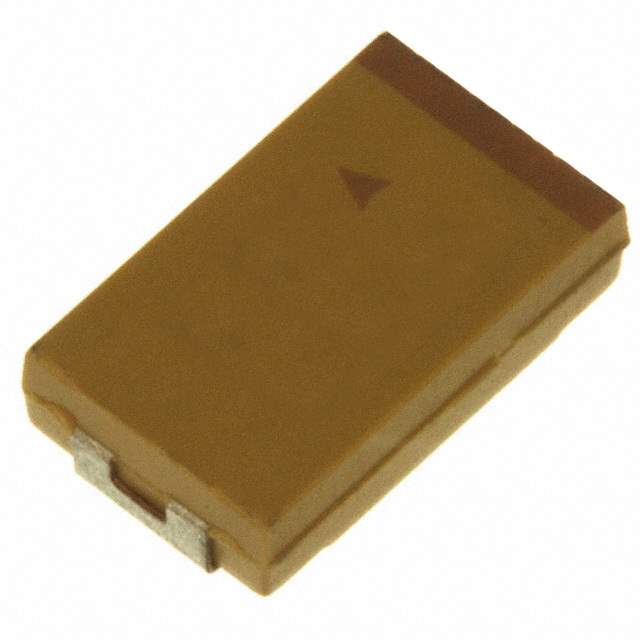

The TAJW686K006RNJ is a 68µF, 6.3V solid tantalum surface mount capacitor from AVX Corporation. It is part of the TAJ series of capacitors, known for their reliability, small size, and stable performance over a wide range of temperatures. These capacitors are commonly used for decoupling, filtering, and energy storage in various electronic circuits.

Applications:

• Decoupling capacitors in power supplies
• Filtering in analog circuits
• Energy storage in portable devices
• Bypass capacitors in digital circuits
• General-purpose applications requiring stable capacitance

Features:

• Solid tantalum construction
• Surface mount package
• High volumetric efficiency
• Stable electrical performance over temperature
• Low ESR (Equivalent Series Resistance)
• RoHS compliant
• J-lead termination style

Benefits:

• Provides stable and reliable capacitance over a wide temperature range.
• Reduces noise and improves signal integrity in electronic circuits.
• Saves board space due to its small size.
• Offers a long operational life.
• Meets environmental standards for lead-free manufacturing.

Additional Details:

The TAJW686K006RNJ has a capacitance of 68µF with a tolerance of ±10%. The rated voltage is 6.3V. It operates over a temperature range of -55°C to +125°C. The ESR is typically low, contributing to efficient filtering and decoupling. The case size is specified as a J case. These capacitors are polarized, so proper orientation is important during installation. Consult the AVX datasheet for detailed specifications, including ESR values at different frequencies and temperatures, ripple current ratings, and soldering guidelines.
