Same model may have multiple batches, images only for reference.

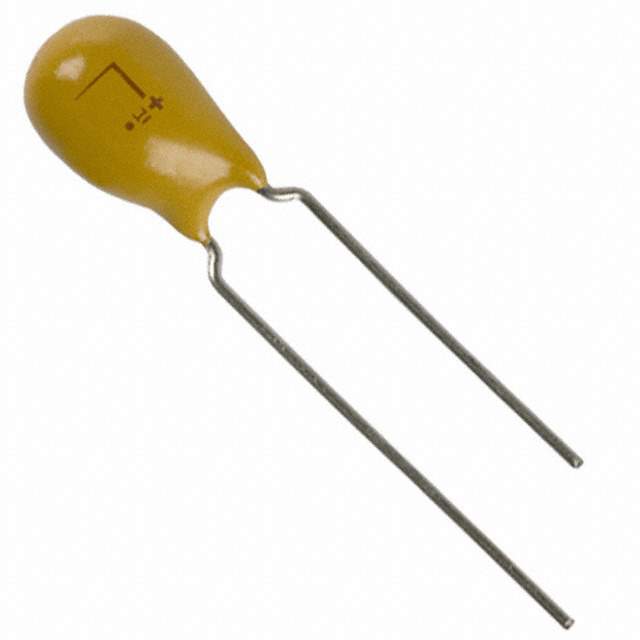

TAP226M016CCS Real Image
Same model may have multiple batches, images only for reference.

TAP226M016CCS

Part No TAP226M016CCS
Manufacturer AVX Corporation
Catalog Tantalum Capacitors
Description CAP TANT 22UF 16V 20% RADIAL / Cap Tant Solid 22uF 16V 20% (6 X 11.5mm) Radial 5mm 2 Ohm 125°C Bulk
Datasheet
TAP226M016CCS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer AVX Corporation
Series TAP
Packaging Bulk
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
Type Conformal Coated
ESR (Equivalent Series Resistance) 2 Ohm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 1000 Hrs @ 85°C
Mounting Style Through Hole
Package Radial
Dimension 0.236" Dia (6.00mm)
Height - Seated (Maximum) 0.453" (11.50mm)
Lead Spacing 0.197" (5.00mm)
Manufacturer Size Code F
Features General
Win Source Part Number 796286-TAP226M016CCS
Popularity Medium
Supply and Demand Status Limited
Family Name TAP
Introduction Date December 31, 2004
ECCN EAR99
Country of Origin El Salvador
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian TAP226M016CCS CAD Model

Description

The AVX Corporation 796286-TAP226M016CCS is a conformal coated type radial capacitor designed for general use.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • Voltage Rating DC: 16V
  • ESR: 2 Ohm
  • Operating Temperature Range: -55°C to 125°C
  • Lifetime: 1000 Hrs @ 85°C
  • Packaging: Bulk
  • Mounting: Through-hole
  • Diameter: 0.236" (6.00mm)
  • Height: 0.453" (11.50mm)
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity: 1 per package
