Same model may have multiple batches, images only for reference.

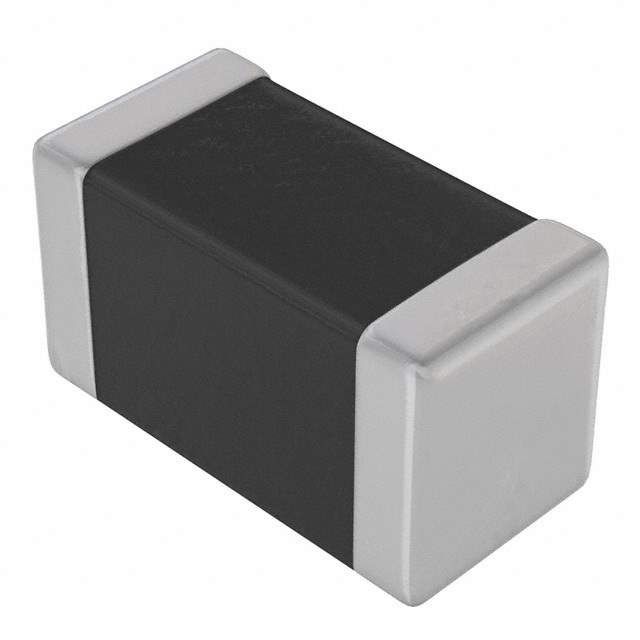

VC060309A200DP Real Image
Same model may have multiple batches, images only for reference.

VC060309A200DP

Part No VC060309A200DP
Manufacturer AVX Corporation
Catalog TVS - Varistors, MOVs
Description VARISTOR 12.7V 30A 0603
Datasheet
VC060309A200DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer AVX Corporation
Packaging Reel - TR
Status Active
Varistor Voltage (Min) 10.8V
Varistor Voltage (Typ) 12.7V
Varistor Voltage (Max) 14.61V
Current - Surge 30A
Energy 0.10J
Number of Circuits 1
Maximum AC Volts 6.4VAC
Maximum DC Volts 9VDC
Capacitance @ Frequency 550pF @ 1kHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Surface Mount, MLCV
Dimension 0603 (1608 Metric)
Win Source Part Number 1116929-VC060309A200DP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VC060309A200DP CAD Model

Description

The AVX Corporation VC060309A200DP is a surface mount MLCV varistor with a capacitance of 550pF @ 1kHz.

  • Capacitance: 550pF @ 1kHz
  • Varistor Voltage: 10.8V to 14.61V
  • Surge Current: 30A
  • Application: Circuit Protection
  • Maximum AC Voltage: 6.4VAC
  • Maximum DC Voltage: 9VDC
  • Dimension: 0603 (1608 Metric)
  • Packaging: Reel
  • Temperature Range: -55°C to 125°C
  • Energy: 0.10J
  • Mounting: Surface Mount
  • Type: MLCV Varistor
