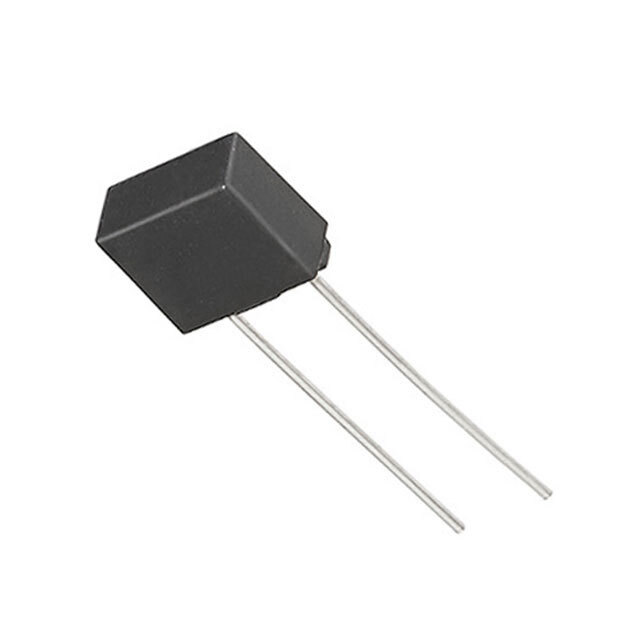

Same model may have multiple batches, images only for reference.
0697H9120-02 Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0697H9120-02

Part No 0697H9120-02
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MT 12A 350VAC 72VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionFuses
Mfr Bel Fuse Inc.
Series 0697H
Packaging Cut Tape (CT)Tape & Box (TB)
Part Status Active
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 12 A
Voltage Rating - AC 350 V
Voltage Rating - DC 72 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 150A AC, 200A DC
Melting I2t 360.0
Approval Agency AEC-Q200, cURus
Operating Temperature -55°C ~ 125°C
Size / Dimension 0.329" L x 0.157" W x 0.307" H (8.35mm x 4.00mm x 7.80mm)
DC Cold Resistance 0.0047 Ohms
Ultra Librarian 3D Model Ultra Librarian 0697H9120-02 CAD Model
