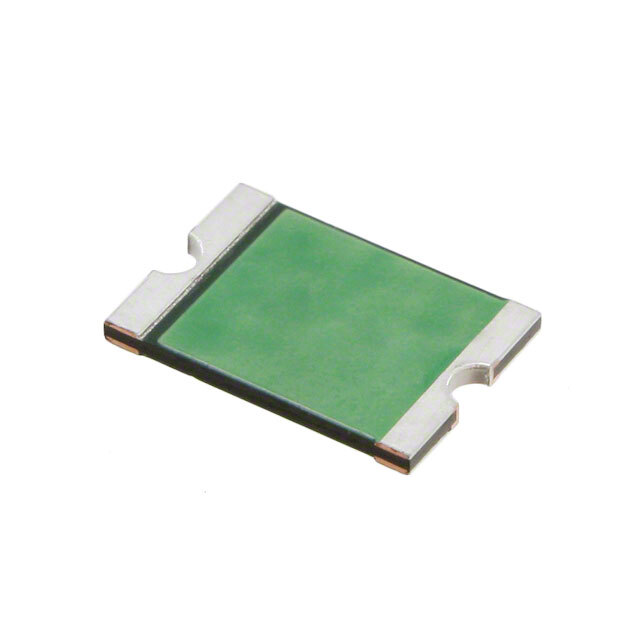

Same model may have multiple batches, images only for reference.
0ZCF0100AF2A Bel Fuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0ZCF0100AF2A

Part No 0ZCF0100AF2A
Manufacturer Bel Fuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 60V 1A 2920
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit ProtectionPTC Resettable Fuses
Manufacturer Bel Fuse Inc.
Series 0ZCF
Part Status Active
Type Polymeric
Voltage - Max 60V
Current - Hold (Ih) (Max) 1 A
Current - Trip (It) 2 A
Current - Max 100 A
Time to Trip 500 ms
Resistance - Initial (Ri) (Min) 90 mOhms
Resistance - Post Trip (R1) (Max) 410 mOhms
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2920 (7351 Metric), Concave
Size / Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.067" (1.70mm)
Approval Agency AEC-Q200, cURus, TUV
Ultra Librarian 3D Model Ultra Librarian 0ZCF0100AF2A CAD Model
