Same model may have multiple batches, images only for reference.

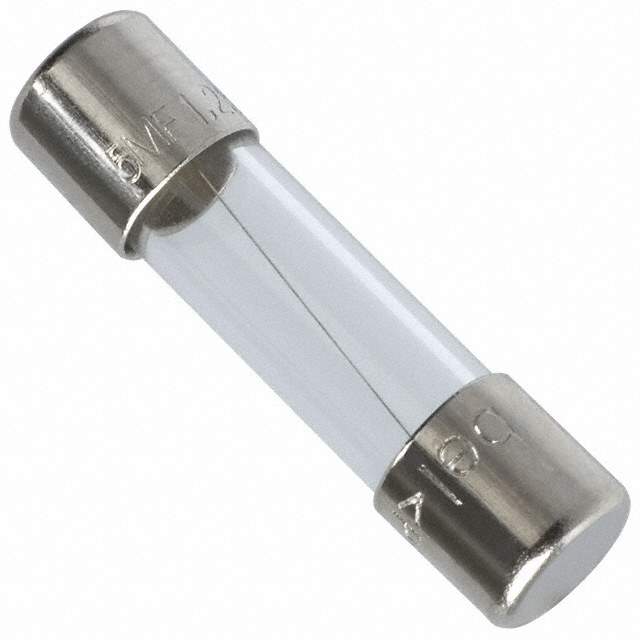

5MF 100-R Real Image
Same model may have multiple batches, images only for reference.

5MF 100-R

Part No 5MF 100-R
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE GLASS 100MA 250VAC 5X20MM / 100 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Datasheet
5MF 100-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bel Fuse Inc.
Series 5MF
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 100 mA
Voltage Rating - AC 250 V
Response Time Fast Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 200A
Melting I2t 0.0009
Approval Agency CE, CSA, cULus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.201" Dia x 0.787" L (5.10mm x 20.00mm)
DC Cold Resistance 6.95 Ohms
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1350512-5MF 100-R
Ultra Librarian 3D Model Ultra Librarian 5MF 100-R CAD Model

Description

The 1350512-5MF 100-R is a fast blow glass cartridge fuse manufactured by Bel Fuse Inc.

  • Fuse Type: Circuit Protection
  • Voltage Rating: 250 V AC
  • Current Rating: 100 mA
  • Breaking Capacity @ Rated Voltage: 200A
  • DC Cold Resistance: 6.95 Ohms
  • Response Time: Fast Blow
  • Melting I2t: 0.0009
  • Mounting Type: Holder Required
  • Package / Case: 5mm x 20mm
  • Temperature Range: -55°C to 125°C
  • Approvals: CE, CSA, and cULus
  • Status: Obsolete
