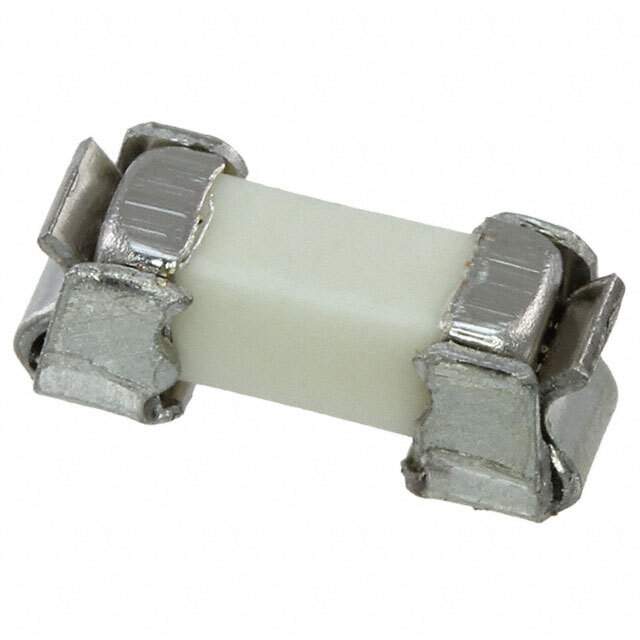

SSQC 315 Real Image
Same model may have multiple batches, images only for reference.

SSQC 315

Part No SSQC 315
Manufacturer Bel Fuse Inc.
Catalog Fuses
Datasheet
SSQC 315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Bel Fuse Inc.
Series SSQC
Package Tape & Reel (TR)
Product Status Obsolete
Mounting Type Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 315 mA
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block with Clip
Breaking Capacity @ Rated Voltage 50A AC, 300A DC
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.330" L x 0.128" W x 0.115" H (8.38mm x 3.25mm x 2.92mm)
Other Names 0679-0315-12,SSQC315,SSQC 315
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1302235-SSQC 315
Ultra Librarian 3D Model Ultra Librarian SSQC 315 CAD Model

Description

The Bel Fuse Inc. SSQC 315 circuit protection fuse is designed for use in electronic circuits that require fuses.

  • Manufacturer: Bel Fuse Inc.
  • Response Time: fast blow
  • Voltage Rating: 125 V AC and 125 V DC
  • Breaking Capacity @ Rated Voltage: 50A AC and 300A DC
  • Current Rating: 315 mA
  • Mounting: holder, surface mount technology
  • Package/Case: 2-SMD, square end block with clip
  • Supply and Demand Status: obsolete
