S560-6600-DJ-F Bel Fuse Inc.
Same model may have multiple batches, images only for reference.

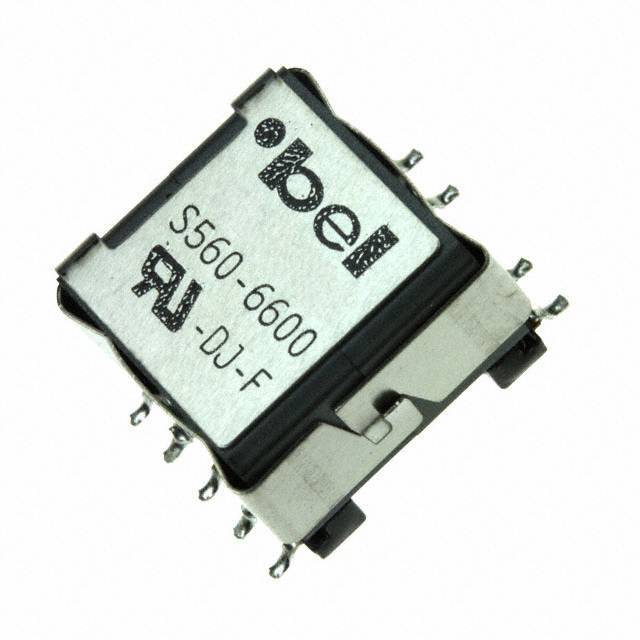

S560-6600-DJ-F

Part No S560-6600-DJ-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN SHDSL ISOL SMD / Telecom Transformer 5.4:1 3.8Ohm Prim. DCR 0.35Ohm Sec. DCR 9 Terminal Gull Wing SMD
Datasheet
S560-6600-DJ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Bel Fuse Inc.
Packaging Reel package
Transformer Type SHDSL
Inductance 3mH
Mounting SMD
Dimension 0.540" L x 0.585" W (13.72mm x 14.86mm)
Height - Seated (Maximum) 0.500" (12.70mm)
Win Source Part Number 793651-S560-6600-DJ-F
Popularity Medium
Supply and Demand Status Limited
Family Name S560
Introduction Date May 21, 2002
ECCN EAR99
Country of Origin China
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian S560-6600-DJ-F CAD Model

Description

The Bel Fuse Inc. S560-6600-DJ-F is a SHDSL transformer that is designed for various applications.

  • Packaging: Reel
  • Inductance: 3mH
  • Mounting Style: SMD
  • Dimensions: 0.540" L x 0.585" W (13.72mm x 14.86mm)
  • Maximum Height: 0.500" (12.70mm)
  • Supply and Demand Status: limited
