Same model may have multiple batches, images only for reference.

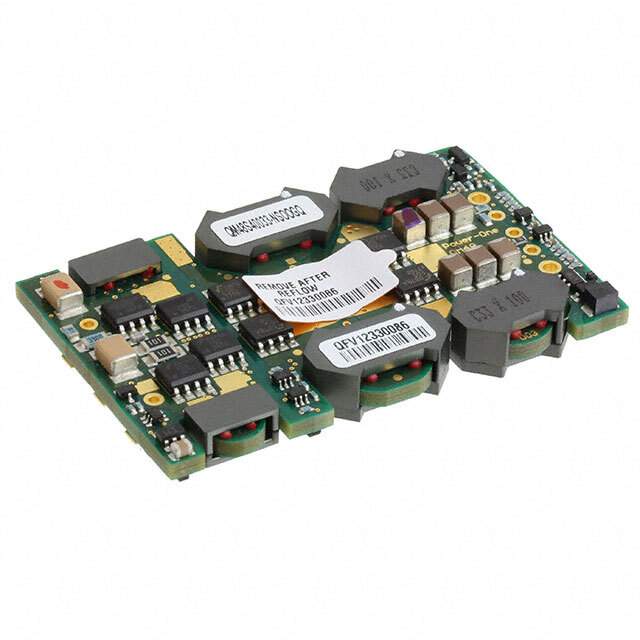

QM48S40033-NS00G Real Image
Same model may have multiple batches, images only for reference.

QM48S40033-NS00G

Part No QM48S40033-NS00G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 3.3V 132W / Module DC-DC 48VIN 1-OUT 3.3V 40A 132W 8-Pin Quarter-Brick
Datasheet
QM48S40033-NS00G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Bel Power Solutions
Series QmaX
Packaging Bulk
Part Status Obsolete(EOL)
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 75V
Voltage - Output 1 3.3V
Current - Output (Maximum) 40A
Power (Watts) 132W
Voltage - Isolation 2kV (2000V)
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature Range -40°C ~ 85°C
Efficiency 90.5%
Mounting SMD
Package 8-SMD Module, 1/4 Brick
Dimension 2.30" L x 1.45" W x 0.28" H (58.4mm x 36.8mm x 7.1mm)
Control Features Enable, Active Low
Win Source Part Number 792810-QM48S40033-NS00G
Popularity Medium
Supply and Demand Status Limited
Family Name QM48S40033
Introduction Date April 28, 2014
Country of Origin China, Malaysia
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian QM48S40033-NS00G CAD Model

Description

The Bel Power Solutions 792810-QM48S40033-NS00G series isolated module is a 1/4 brick type power supply module designed for ITE (Commercial) applications.

  • Voltage Input Range: 36V to 75V
  • Output Voltage: 3.3V
  • Maximum Output Current: 40A
  • Features: Remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), and undervoltage lockout (UVLO)
  • Efficiency: 90.5%
  • Voltage Isolation Rating: 2kV
  • Package Type: 8-SMD module
  • Dimensions: 2.30" L x 1.45" W x 0.28" H (58.4mm x 36.8mm x 7.1mm)
  • Status: Obsolete (EOL) and limited supply
