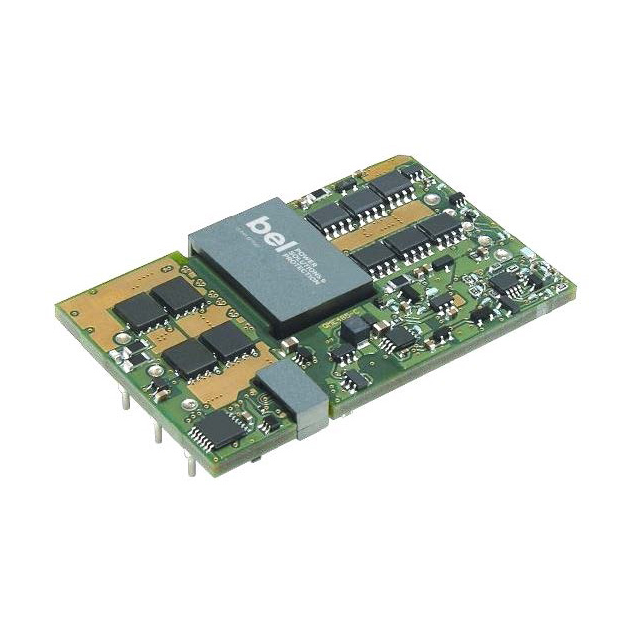

QME48T20120-NGA0G Real Image
Same model may have multiple batches, images only for reference.

QME48T20120-NGA0G

Part No QME48T20120-NGA0G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 240W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bel Power Solutions
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Maximum Input Voltage 75V
Voltage - Output 1 12V
Current - Output (Maximum) 20A
Power (Watts) 240W
Voltage - Isolation 2kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Style Through Hole
Manufacturer Package 8-DIP Module, 1/4 Brick
Dimension 2.30" L x 1.45" W x 0.48" H (58.4mm x 36.8mm x 12.2mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810514-QME48T20120-NGA0G
Ultra Librarian 3D Model Ultra Librarian QME48T20120-NGA0G CAD Model

Description

The QME48T20120-NGA0G is an isolated module from Unknown Manufacturer with a power rating of 240W.

  • Voltage Isolation: 2kV
  • Maximum Input Voltage: 75V
  • Output Voltage: 12V
  • Current Output: 20A
  • Component Type: Through-Hole
  • Package Style: 8-DIP Module, 1/4 Brick
  • Features: Remote On/Off, Overcurrent Protection, Over-Temperature Protection, Overvoltage Protection, Short-Circuit Protection, Undervoltage Lockout
  • Efficiency: 93%
  • Operating Temperature: -40°C to 85°C
  • Applications: ITE (commercial)
