Same model may have multiple batches, images only for reference.

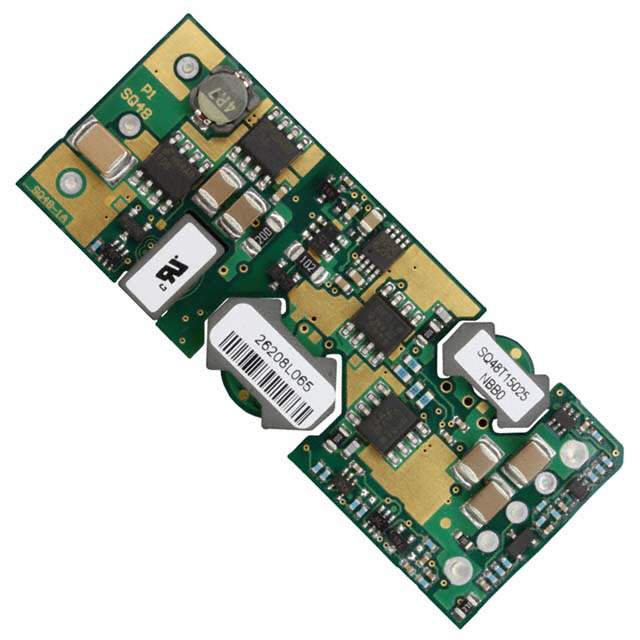

SQ48T15025-NBB0 Real Image
Same model may have multiple batches, images only for reference.

SQ48T15025-NBB0

Part No SQ48T15025-NBB0
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 2.5V 38W / Isolated Module DC DC Converter 1 Output 2.5V 15A 36V - 75V Input
Datasheet
SQ48T15025-NBB0 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series SemiQ™ SQ48
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 2.5V
Current - Output (Max) 15A
Power (Watts) 38 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
Control Features Enable, Active Low
Other Names 179-2215,SQ48T15025-NBBO,SQ48T15025-NAA0
Standard Package 25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237682-SQ48T15025-NBB0
Ultra Librarian 3D Model Ultra Librarian SQ48T15025-NBB0 CAD Model

Description

The Bel Power Solutions 1237682-SQ48T15025-NBB0 is an isolated module that falls under the SemiQ™ SQ48 series.

  • Type: Power supply board mount DC-DC converter
  • Power Output: 38W
  • Output: One output
  • Maximum Output Current: 15A
  • Input Voltage Range: 36V to 75V
  • Output Voltage: 2.5V
  • Efficiency: 87%
  • Mounting: Through-hole mounted
  • Package/Case: 8-DIP module, 1/8 Brick
  • Operating Temperature Range: -40°C to 85°C
  • Dimensions: 2.30" L x 0.90" W x 0.26" H (58.4mm x 22.9mm x 6.6mm)
  • Status: Obsolete
  • RoHS Compliance: Non-compliant
