Same model may have multiple batches, images only for reference.

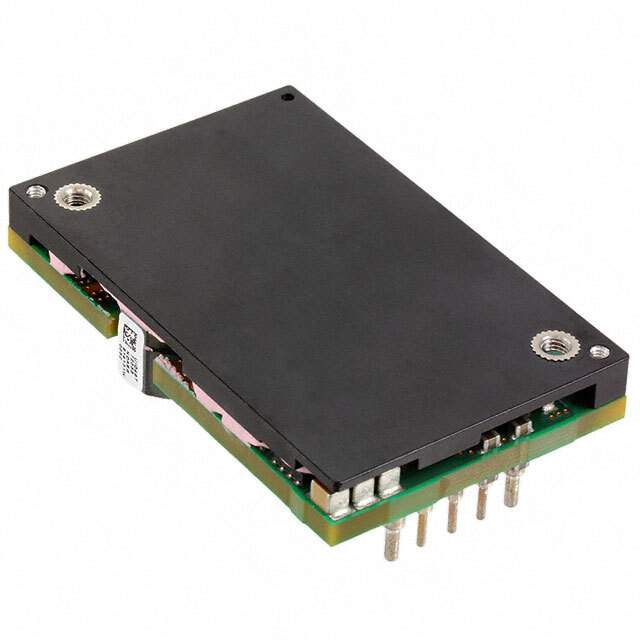

UIQ48T72033-NDABG Real Image
Same model may have multiple batches, images only for reference.

UIQ48T72033-NDABG

Part No UIQ48T72033-NDABG
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V 240W / Isolated Module DC DC Converter 1 Output 3.3V 72A 18V - 75V Input
Datasheet
UIQ48T72033-NDABG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Bel Power Solutions
Series UIB (240W)
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Current - Output (Max) 72A
Power (Watts) 240 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 91%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/4 Brick
Dimension 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm)
Control Features Enable, Active Low
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2266-UIQ48T72033-NDABG,179-2771
Standard Package 25
Win Source Part Number 1097831-UIQ48T72033-NDABG
Ultra Librarian 3D Model Ultra Librarian UIQ48T72033-NDABG CAD Model

Description

The 1097831-UIQ48T72033-NDABG is a power supply component that is part of the UIB (240W) series.

  • Series: UIB (240W)
  • Type: Isolated Module
  • Features: Remote On/Off, OCP, OTP, OVP, and UVLO
  • Packaging: Tray
  • Application: ITE (Commercial)
  • Standard Package: 25
  • Power: 240 W
  • Status: Obsolete
