Same model may have multiple batches, images only for reference.

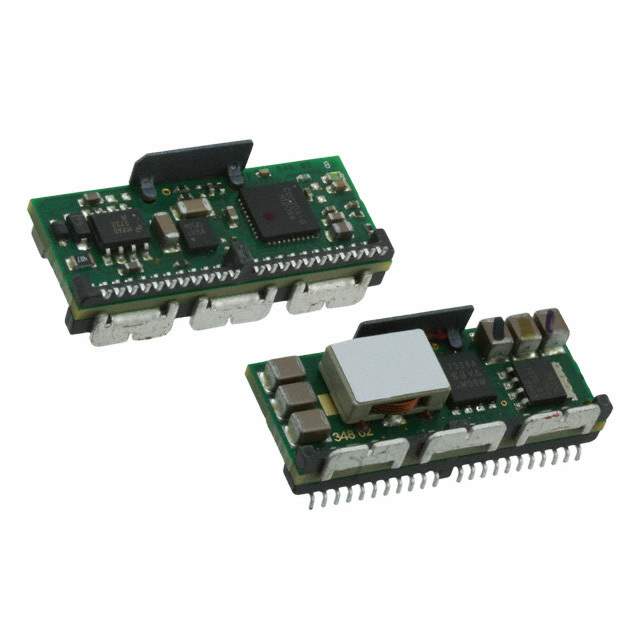

ZY7120LG-T3 Real Image
Same model may have multiple batches, images only for reference.

ZY7120LG-T3

Part No ZY7120LG-T3
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description PROGBL CONVERT DC-DC 20A OUT SMD
Datasheet
ZY7120LG-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Bel Power Solutions
Series Intelligent POL Converter
Packaging Reel(TR)
Type Non-Isolated PoL Module, Digital
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 13.2V
Voltage - Output 1 0.5 ~ 5.5 V
Current - Output (Max) 20A
Applications ITE (Commercial)
Mounting Style SMD/SMT
Package Module
Size / Dimension 1.26" L x 0.39" W x 0.55" H (32.0mm x 10.0mm x 14.0mm)
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 132226-ZY7120LG-T3
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian ZY7120LG-T3 CAD Model

Description

The Bel Power Solutions 132226-ZY7120LG-T3 is a non-isolated PoL module, digital type intelligent POL converter.

  • Package: Module
  • Size/Dimension: 1.26" L x 0.39" W x 0.55" H (32.0mm x 10.0mm x 14.0mm)
  • Application: ITE (commercial)
  • Voltage Input Range: 3V to 13.2V
  • Output: One output
  • Maximum Output Current: 20A
  • Output Voltage Range: 0.5V to 5.5V
  • Features: No features
  • Mounting: SMD/SMT
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Limited
  • Package Quantity: 50
