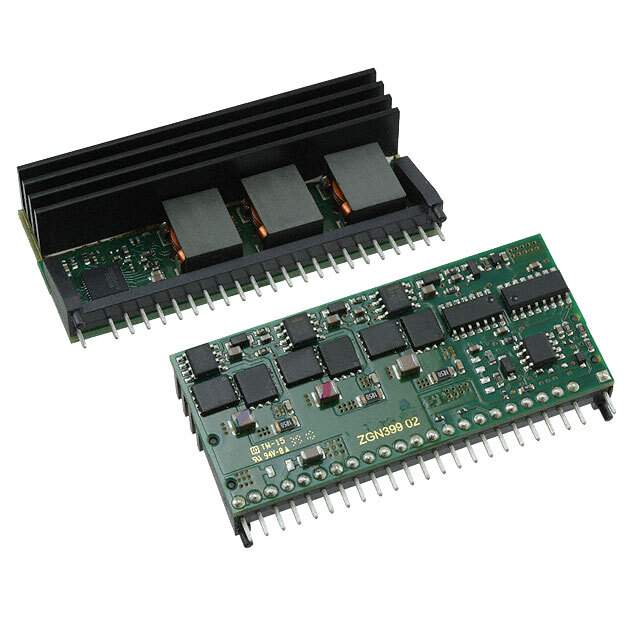

ZY8160G Real Image
Same model may have multiple batches, images only for reference.

ZY8160G

Part No ZY8160G
Manufacturer Bel Power Solutions
Catalog Power Supplies Board Mount DCDC Converters
Description PROGBL CONVERT DC-DC 60A OUT THU
Datasheet
ZY8160G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Bel-Power-Solutions
Series Intelligent POL Converter
Packaging Tray
Type Non-Isolated PoL Module, Digital
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 14V
Voltage - Output 1 0.5 ~ 2.75 V
Current - Output (Max) 60A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 24-SIP Module (23 Leads)
Size / Dimension 2.40" L x 0.55" W x 1.10" H (61.0mm x 14.0mm x 28.0mm)
Operating Temperature Range 0°C ~ 70°C
Efficiency 92.5%
Win Source Part Number 214728-ZY8160G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian ZY8160G CAD Model

Description

The Bel-Power-Solutions Intelligent POL Converter is a digital non-isolated PoL module that is designed for ITE (commercial) applications.

  • Power Output: 60A
  • Voltage Input Range: 8V to 14V
  • Output Voltage: 0.5V to 2.75V
  • Efficiency: 92.5%
  • Mounting: 24-SIP module (23 leads)
  • Operating Temperature: 0°C to 70°C
  • Module Type: Through-hole
  • Dimensions: 2.40" L x 0.55" W x 1.10" H (61.0mm x 14.0mm x 28.0mm)
  • Packaging: Tray package
  • Popularity: Popular product with limited supply and demand status
  • Units per Package: 30
