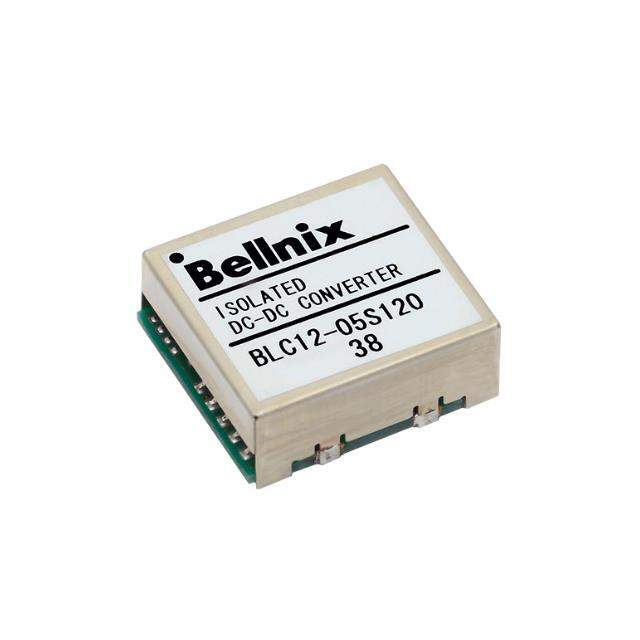

BLC12-12W25 Real Image
Same model may have multiple batches, images only for reference.

BLC12-12W25

Part No BLC12-12W25
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 9V - 18V Input
Datasheet
BLC12-12W25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BLC12 (6W)
Package Bulk
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 250mA, 250mA
Power (Watts) 6 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 7 Leads
Size / Dimension 0.91" L x 0.83" W x 0.39" H (23.2mm x 21.1mm x 10.0mm)
Base Product Number BLC12
Standard Package 45
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338582-BLC12-12W25
Ultra Librarian 3D Model Ultra Librarian BLC12-12W25 CAD Model

Description

The Bellnix Co., Ltd. BLC12 series isolated module DC-DC converter features two outputs with a power rating of 6W.

  • Voltage Isolation: 500V
  • Temperature Range: -40°C to 85°C
  • Efficiency: 83%
  • Standard Package: 45
  • Size Dimension: 0.91" L x 0.83" W x 0.39" H (23.2mm x 21.1mm x 10.0mm)
  • Application: Information Technology Equipment (ITE), Commercial
