Same model may have multiple batches, images only for reference.

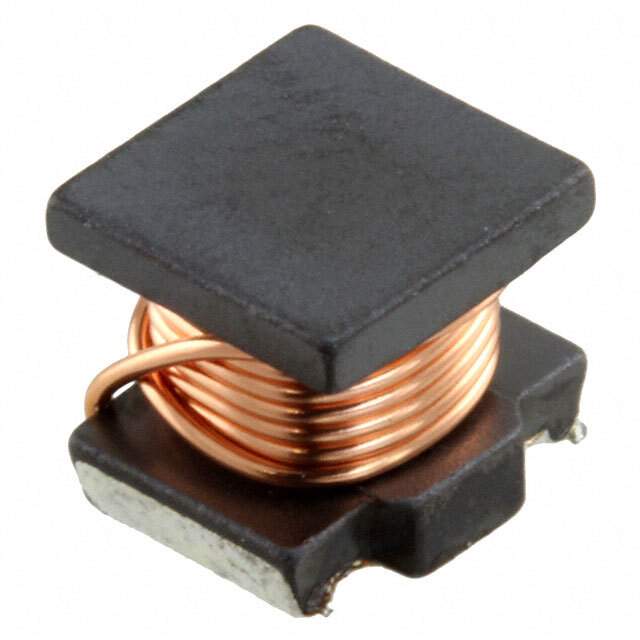

LQH55DN1R0M03L Real Image
Same model may have multiple batches, images only for reference.

LQH55DN1R0M03L

Part No LQH55DN1R0M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 4A 19 MOHM SMD
Datasheet
LQH55DN1R0M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 1μH
Tolerance ±20%
Current Rating 4A
DC Resistance (DCR) 26.6 mOhm Max
Frequency - Self Resonant 150MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 1057232-LQH55DN1R0M03L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH55DN1R0M03L CAD Model

Description

The Murata Electronics North America LQH55DN1R0M03L is a wirewound inductor with a current rating of 4A and an inductance of 1μH.

  • Inductor Type: Wirewound
  • Current Rating: 4A
  • Inductance: 1μH
  • Mounting Type: SMD (SMT)
  • Height: 0.197" (5.00mm)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 26.6 mOhm Max
  • Temperature Range: -40°C to 85°C
  • Supply and Demand Status: Balanced
