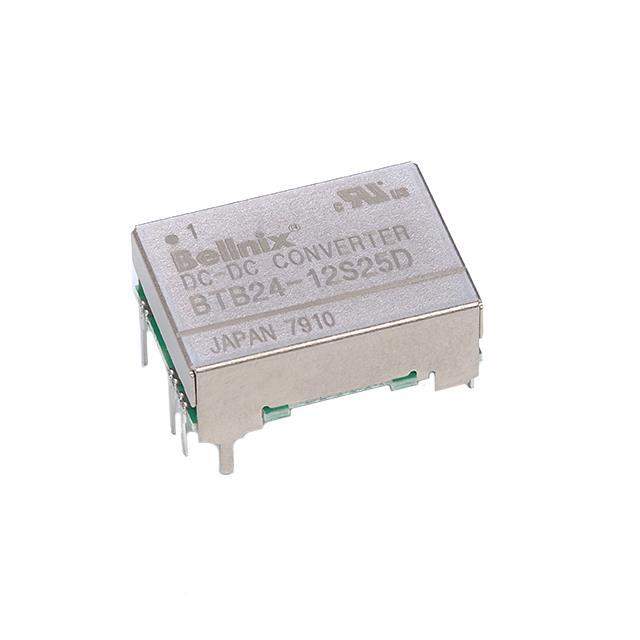

BTB24-12W12D Real Image
Same model may have multiple batches, images only for reference.

BTB24-12W12D

Part No BTB24-12W12D
Manufacturer Bellnix Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 18V - 36V Input
Datasheet
BTB24-12W12D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Bellnix Co., Ltd.
Series BTB (3W)
Package Bulk
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 500 V
Applications ITE (Commercial)
Features Adjustable Output, Remote On/Off
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Type Through Hole
Package / Case Module
Size / Dimension 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm)
Approval Agency cUL, UL
Base Product Number BTB24
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1340319-BTB24-12W12D
Ultra Librarian 3D Model Ultra Librarian BTB24-12W12D CAD Model

Description

The Bellnix Co., Ltd. BTB24-12W12D is a power supply board mount DC DC converter that has two outputs.

  • Output: Two outputs
  • Adjustable Output: Yes
  • Remote On/Off Feature: Yes
  • Package: Bulk
  • Size/Dimension: 0.91" L x 0.65" W x 0.33" H (23.2mm x 16.6mm x 8.4mm)
  • Suitable for: ITE (commercial) applications
  • Power (Watts): 3W
  • Voltage Isolation: 500V
  • Current Output (Max): 125mA for both outputs
  • Voltage Input (Min): 18V
  • Voltage Input (Max): 36V
  • Voltage Output 1: 12V
  • Voltage Output 2: -12V
  • Efficiency: 81%
  • Mounting Type: Through-Hole
  • Package/Case: Module
  • Temperature Range (Operating): -40°C to 85°C (with derating)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8504.40.9580
  • Approvals: cUL and UL
