Same model may have multiple batches, images only for reference.

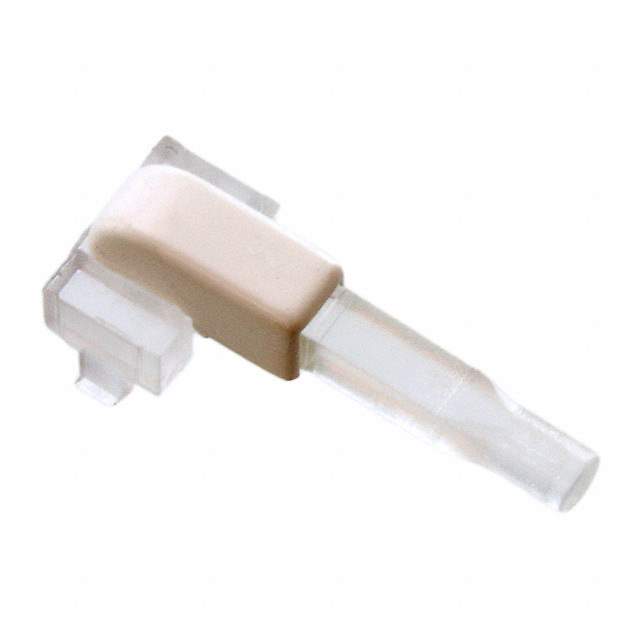

RLP1-200-800 Real Image
Same model may have multiple batches, images only for reference.

RLP1-200-800

Part No RLP1-200-800
Manufacturer Bivar Inc.
Catalog Optics - LEDs - Light Pipes
Description RIGHT ANGLE LIGHT PIPE, 2.8MM / Light Pipe Single Clear Rigid Board Mount, Snap-In, Right Angle
Datasheet
RLP1-200-800 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Light Pipes
Mfr Bivar Inc.
Series RLP1
Package Bag
Color Clear
Configuration Single
Type Rigid
Mounting Type Board Mount, Snap-In, Right Angle
Lens Style Round with Flat Top
Lens Size 2.8mm
Base Product Number RLP1
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 3926.90.9985
Win Source Part Number 1351724-RLP1-200-800
Ultra Librarian 3D Model Ultra Librarian RLP1-200-800 CAD Model

Description

The RLP1 series from Bivar Inc. is a type of rigid light pipe that is designed for board mount, snap-in, and right angle mounting.

  • Mounting: Board Mount, Snap-In, Right Angle
  • Lens Style: Round with Flat Top
  • Lens Size: 2.8mm
  • Color: Clear
  • Package: Bag
  • Standard Package: 100
  • MSL Level: 1 (Unlimited)
  • HTSUS: 3926.90.9985
  • Base Product Number: RLP1
