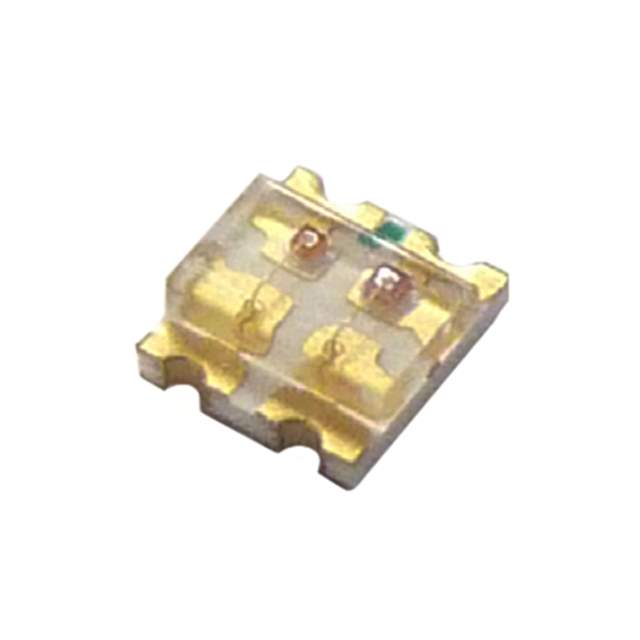

Same model may have multiple batches, images only for reference.

SM0605BC-Y/G

Get a Quote

Part No	SM0605BC-Y/G
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED GREEN/YELLOW CLEAR 0605 SMD / Green, Yellow 574nm Green, 590nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow 0605 (1613 Metric)
Datasheet	SM0605BC-Y/G Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel
Color	Green, Yellow
Configuration	Independent
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	60mcd Green, 180mcd Yellow
Lens Style	Rectangle with Flat Top
Lens Size	1.50mm x 1.00mm
Voltage - Forward (Vf) (Typ)	2.2V Green, 2.1V Yellow
Current - Test	20mA Green, 20mA Yellow
Viewing Angle	120°
Mounting	SMD (SMT)
Wavelength - Dominant	574nm Green, 590nm Yellow
Wavelength - Peak	592nm Green, 572nm Yellow
Package / Case	0605 (1613 Metric)
Supplier Device Package	0605
Dimension	1.60mm L x 1.50mm W
Height (Max)	0.85mm
Base Product Number	SM0605
Other Names	492-2276-2,492-2276-1,492-2276-6
Standard Package	4,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242334-SM0605BC-Y/G
Ultra Librarian 3D Model	Ultra Librarian SM0605BC-Y/G CAD Model

Alternative Products

Description

The 1242334-SM0605BC-Y/G is a green and yellow LED indication discrete component from Bivar Inc.

Viewing Angle: 120 degrees
Lens Color: Colorless with clear transparency
Millicandela rating: 60mcd for green and 180mcd for yellow
Voltage: 2.2V for green and 2.1V for yellow
Wavelength Dominant: 574nm for green and 590nm for yellow
Package: Tape and Reel
Standard Package: 4,000
Configuration: Independent
Mounting: SMD (SMT)
Dimension: 1.60mm L x 1.50mm W
Lens Style: Rectangle with a flat top
ECCN: EAR99
MSL Level: 4 (72 hours)
