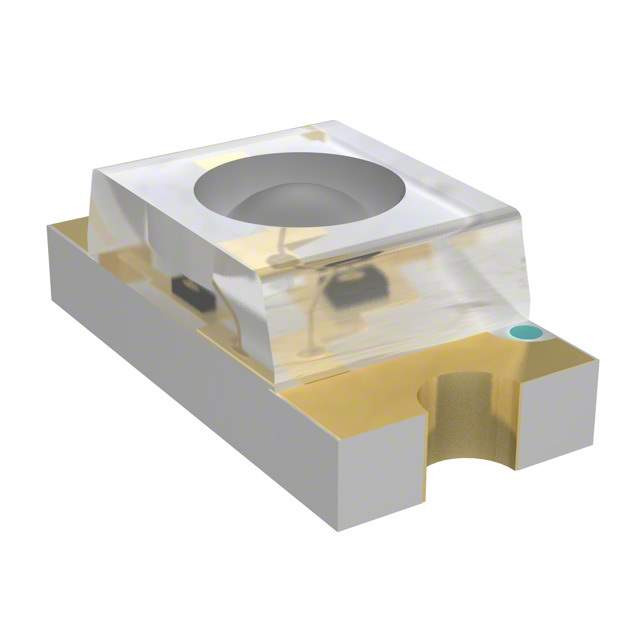

SM1206GC Real Image
Same model may have multiple batches, images only for reference.

SM1206GC

Part No SM1206GC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1206 SMD / Green 565nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
Datasheet
SM1206GC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel (TR)
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 15mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Dominant 565nm
Wavelength - Peak 568nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.10mm
Base Product Number SM1206
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242261-SM1206GC
Ultra Librarian 3D Model Ultra Librarian SM1206GC CAD Model

Description

The SM1206GC is a green LED component from Bivar Inc.

  • Lens: Clear, colorless
  • Millicandela Rating: 15mcd
  • Forward Voltage: 2.1V
  • Viewing Angle: 140 degrees
  • Configuration: Standard
  • Mounting: SMD (SMT) technology
  • Package: Tape and reel (TR)
  • Standard Package: 3,000
  • Dimension: 3.20mm L x 1.60mm W
  • Height: 1.10mm
  • ECCN: EAR99
  • MSL Level: 4 (72 hours)
