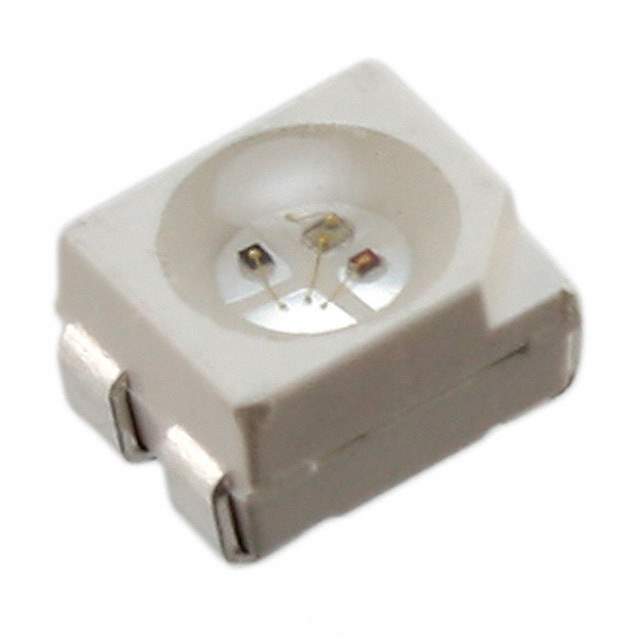

SMTL4-SRGY Real Image
Same model may have multiple batches, images only for reference.

SMTL4-SRGY

Part No SMTL4-SRGY
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN/RED/YLW CLR 4PLCC SMD / Green, Red, Yellow 525nm Green, 625nm Red, 591nm Yellow LED Indication - Discrete 3.3V Green, 1.9V Red, 1.9V Yellow 4-PLCC
Datasheet
SMTL4-SRGY Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Green, Red, Yellow
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1450mcd Green, 180mcd Red, 180mcd Yellow
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 3.3V Green, 1.9V Red, 1.9V Yellow
Current - Test 20mA Green, 20mA Red, 20mA Yellow
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 525nm Green, 625nm Red, 591nm Yellow
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.05mm
Base Product Number SMTL4
Other Names 492-2193-2,492-2193-1,492-2193-6
Standard Package 2,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242340-SMTL4-SRGY
Ultra Librarian 3D Model Ultra Librarian SMTL4-SRGY CAD Model

Description

The Bivar Inc. SMTL4-SRGY is an electronic component that is designed for optoelectronics and LED indication - discrete.

  • Configuration: Common Anode
  • Viewing Angle: 120-degree
  • Lens Style: Round lens style with a flat top
  • Series: SMTL4 series
  • Colors: Green, Red, and Yellow
  • Package: Tape and Reel
  • Standard Package: 2,000
  • MSL Level: 4 (72 Hours)
  • HTSUS: 8541.41.0000
