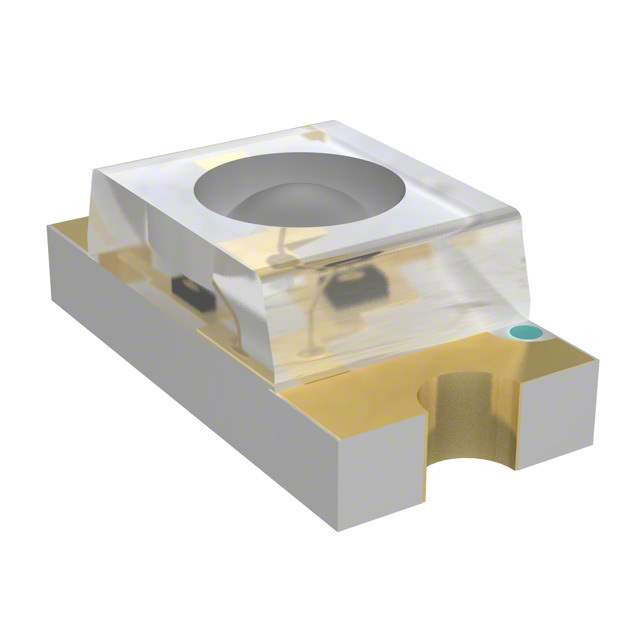

Same model may have multiple batches, images only for reference.

SM1206RC

Name: SM1206RC
Brand: Bivar Inc.
SKU: 968996
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SM1206RC
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 1206 SMD / Red 645nm LED Indication - Discrete 2V 1206 (3216 Metric)
Datasheet	SM1206RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel (TR)
Color	Red
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	0.9mcd
Lens Style	Rectangle with Flat Top
Lens Size	2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)	2V
Current - Test	20mA
Viewing Angle	140°
Mounting	SMD (SMT)
Wavelength - Dominant	645nm
Wavelength - Peak	700nm
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimension	3.20mm L x 1.60mm W
Height (Max)	1.10mm
Base Product Number	SM1206
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Standard Package	3,000
Win Source Part Number	968996-SM1206RC
Ultra Librarian 3D Model	Ultra Librarian SM1206RC CAD Model

Alternative Products

Description

The 968996-SM1206RC is a red LED indication discrete electronic component from Bivar Inc.

Color: Red
Configuration: Standard
Viewing Angle: 140 degrees
Lens Transparency: Clear
Millicandela Rating: 0.9mcd
Voltage - Forward (Vf): 2V (Typical)
Packaging: Tape & Reel (TR)
Standard Package: 3,000
Mounting Type: SMD
Dimension: 3.20mm L x 1.60mm W
Lens Style: Rectangle with a Flat Top
Lens Size: 2.00mm x 1.60mm
