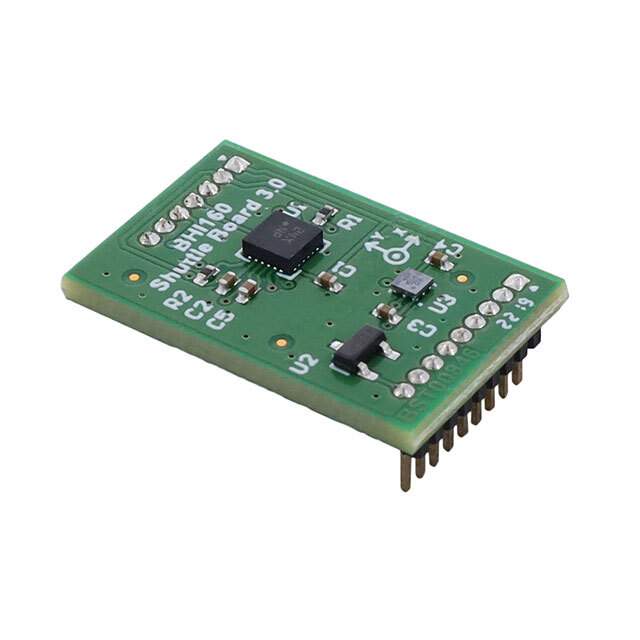

SHUTTLE BOARD 3.0 BHI160B Real Image
Same model may have multiple batches, images only for reference.

SHUTTLE BOARD 3.0 BHI160B

Part No SHUTTLE BOARD 3.0 BHI160B
Manufacturer Bosch Sensortec
Catalog Evaluation Boards - Sensors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Sensors
Mfr Bosch Sensortec
Package Box
Sensor Type Accelerometer, Gyroscope
Sensing Range ±2g, 4g, 8g, 16g, 125°/sec, 250°/sec, 500°/sec, 1000°/sec, 2000°/sec
Interface I2C
Sensitivity 16384LSB/g, 8192LSB/g, 4096LSB/g, 2048LSB/g, 262.4LSB/(°/s), 131.2LSB/(°/s), 65.6LSB/(°/s), 32.8LSB/(°/s), 16.4LSB/(°/s)
Voltage - Supply 1.71V ~ 3.6V
Embedded No
Supplied Contents Board(s)
Utilized IC / Part BHI160B
Other Names 828-SHUTTLEBOARD3.0BHI160B,0440.SB6.309
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1283801-SHUTTLE BOARD 3.0 BHI160B
Ultra Librarian 3D Model Ultra Librarian SHUTTLE BOARD 3.0 BHI160B CAD Model

Description

The BHI160B is an accelerometer and gyroscope sensor type evaluation board.

  • Sensing range (accelerometer): ±2g, 4g, 8g, or 16g
  • Sensing range (gyroscope): 125°/s, 250°/s, 500°/s, 1000°/s, or 2000°/s
  • Interface: I2C
  • Sensitivity: 16384LSB/g, 8192LSB/g, 4096LSB/g, 2048LSB/g, 262.4LSB/(°/s), 131.2LSB/(°/s), 65.6LSB/(°/s), 32.8LSB/(°/s), or 16.4LSB/(°/s)
  • Supplied as: A board
  • Embedded: Not embedded
  • Voltage range: 1.71V to 3.6V
  • ECCN: EAR99
  • Ideal for: Use in various electronic applications, including robotics and motion sensing
