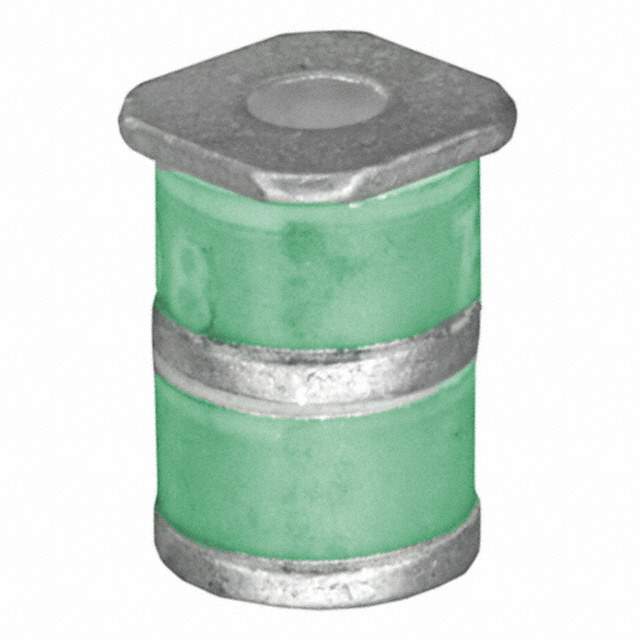

2036-07-SM Real Image
Same model may have multiple batches, images only for reference.

2036-07-SM

Part No 2036-07-SM
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description Precision Gas Discharge Tube Surge Protector | GDT 75V 20% 10KA SURFACE MOUNT
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Voltage - DC Spark Over (Nom) 75V
Impulse Discharge Current (8/20μs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Style SMD
Manufacturer Package 3-SMD Cylinder Square End
Family Part Number 2036
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1122869-2036-07-SM
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2036-07-SM CAD Model

Description

The Bourns Inc. 1122869-2036-07-SM is a 3-pole SMD cylinder square end gas discharge tube (GDT) with a voltage tolerance of ±20% and a DC spark over voltage of 75V.

  • Poles: 3
  • Type: SMD Cylinder Square End GDT
  • Voltage Tolerance: ±20%
  • DC Spark Over Voltage: 75V
  • Impulse Discharge Current: 10,000A (10kA)
  • Fail Short: No
  • Supplied: Bulk
  • Manufacturer Pack Quantity: 100
  • MSL Level: 1 (Unlimited)
