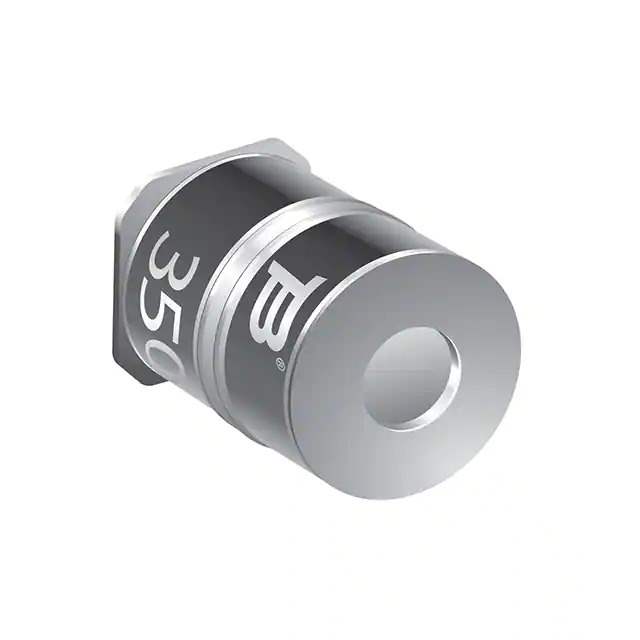

2036-09-SMLF Real Image
Same model may have multiple batches, images only for reference.

2036-09-SMLF

Part No 2036-09-SMLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 10KA 3 POLE SMD
Datasheet
2036-09-SMLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series Mini-TRIGARD™ 2036
Package Bulk
Product Status Active
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 10000A (10kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Type Surface Mount
Package / Case 3-SMD Cylinder Square End
Base Product Number 2036
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 854513-2036-09-SMLF
Ultra Librarian 3D Model Ultra Librarian 2036-09-SMLF CAD Model

Description

The Mini-TRIGARD™ 2036 is a gas discharge tube arrester (GDT) designed for circuit protection and manufactured by Bourns Inc..

  • Voltage Rating: 90V
  • Tolerance: ±20%
  • Number of Poles: 3
  • Mounting Type: Surface Mount
  • Package: Bulk
  • Standard Package: 100 pcs
  • Product Series: Active
  • Impulse Discharge Current: 10kA (10000A)
  • Fail Short: No
  • Package/Case: 3-SMD cylinder square end
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.30.8000
  • California Prop 65: Compliant with warning information
