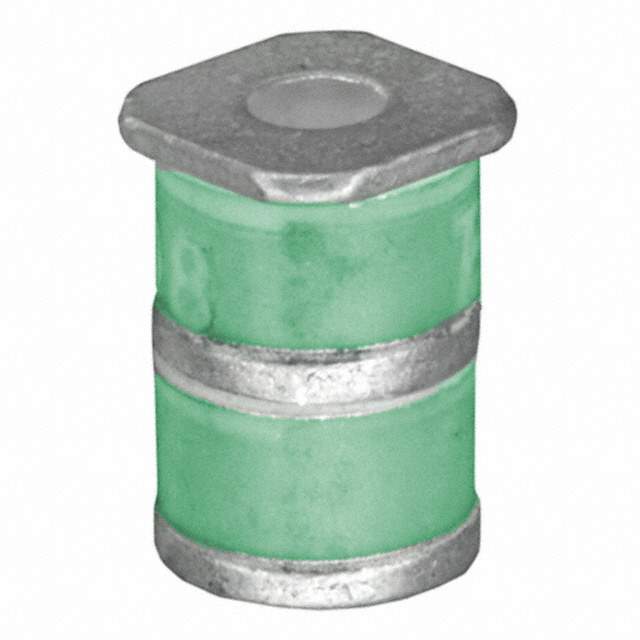

2036-15-SM-RPLF Real Image
Same model may have multiple batches, images only for reference.

2036-15-SM-RPLF

Part No 2036-15-SM-RPLF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 150V 10KA 3 POLE SMD
Datasheet
2036-15-SM-RPLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features Gas Discharge Tube 10000A (10kA) ±20% Pole Surface Mount
Manufacturer Bourns Inc.
Series Mini-TRIGARD™ 2036-SM
Package Reel - TR
Mounting Surface Mount
Package 3-SMD Cylinder Square End
Family Name 2036
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number 2036-15-SM-RPLFCT, 2036-15-SM-RPLFTR, 203615SMRPLF, 2036-15-SM-RPLFDKR
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905854-2036-15-SM-RPLF
Ultra Librarian 3D Model Ultra Librarian 2036-15-SM-RPLF CAD Model

Description

The 2036-15-SM-RPLF is a Mini-TRIGARD™ 2036-SM series gas discharge tube manufactured by Bourns Inc.

  • Product Name: 2036-15-SM-RPLF
  • Manufacturer: Bourns Inc.
  • Series: Mini-TRIGARD™ 2036-SM
  • Current Rating: 10000A (10kA) ±20%
  • Mounting Type: Surface Mount
  • Package: 3-SMD cylinder square end
  • Use Case: Circuit protection
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.30.8000
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 19 weeks
